METER

LEVER - SWITCH - CABLE (2) FOR HONDA NH 100 LEAD 2001

FRONT BRAKE MASTER CYLINDER

CABLE COMP., THROTTLE

17910-KFH-711 17910KFH711

Not available

SWITCH UNIT, STARTER

35160-GS7-671 35160GS7671

Not available

SWITCH UNIT, DIMMER

35170-GW2-000 35170GW2000

Not available

SWITCH UNIT, HORN

35180-GS7-671 35180GS7671

Not available

--- UNITE DE INTERRUPTEUR DECLIGNOTANT

35200-KCW-851 35200KCW851

Not available

SWITCH ASSY., FR. STOP

35340-GZ9-003 35340GZ9003

Not available

CABLE COMP., FR. BRAKE CONNECTING

43440-GCS-000 43440GCS000

Not available

CLAMP A, RR. BRAKE CABLE

43453-KFH-000 43453KFH000

Not available

CLAMP B, RR. BRAKE CABLE

43454-KFH-000 43454KFH000

Not available

CLAMPER, RR. BRAKE CABLE

43455-GCK-000 43455GCK000

4,31 $

Unit Price

--- JEU DE CABLE, FREIN AR.

43460-GCS-000 43460GCS000

Not available

--- GUIDE B, CABLE DE FREIN AR.

43461-GCS-000 43461GCS000

Not available

GRIP COMP., THROTTLE

53140-GW2-710 53140GW2710

Not available

HOUSING, UNDER THROTTLE

53167-GAH-A00 53167GAHA00

14,55 $

Unit Price

GRIP SET, R. HANDLE

53167-GW2-305 53167GW2305

Not available

HOUSING, UPPER THROTTLE

53168-GAH-A00 53168GAHA00

14,55 $

Unit Price

GRIP SET, L. HANDLE

53168-GW2-305 53168GW2305

Not available

BAND, HANDLE BRACKET

53171-GBL-870 53171GBL870

3,27 $

Unit Price

BRACKET, L. HANDLE LEVER

53172-GCS-000 53172GCS000

Not available

COVER, L. BRAKE LEVER BRACKET

53173-GCS-000 53173GCS000

Not available

LEVER, L. STEERING HANDLE

53178-GCS-000 53178GCS000

24,37 $

Unit Price

SPRING, LEVER RETURN

53182-GCS-000 53182GCS000

Not available

EQUALIZER COMP.

53184-GCS-000 53184GCS000

Not available

ARM COMP., RR. BRAKE LOCK

53185-GCS-000 53185GCS000

Not available

COVER, RR. BRAKE LOCK LEVER

53186-GCS-000 53186GCS000

Not available

LEVER, PARKING BRAKE LOCK

53187-GCS-000 53187GCS000

Not available

SPRING, BRAKE LOCK ARM RETURN

53188-GCS-000 53188GCS000

Not available

PIN, BRAKE LOCK LEVER PIVOT

53189-GCS-000 53189GCS000

2,27 $

Unit Price

BOOT, MIRROR

88113-GCS-000 88113GCS000

Not available

MIRROR COMP., R.

88210-GCS-003 88210GCS003

Not available

MIRROR COMP., L.

88220-GCS-003 88220GCS003

Not available

SCREW, HANDLE LEVER PIVOT

90113-GE8-000 90113GE8000

Not available

SCREW, HANDLE LEVER PIVOT

90115-GBL-870 90115GBL870

1,75 $

Unit Price

NUT, LOCK

90134-GM8-000 90134GM8000

4,18 $

Unit Price

NUT, HEX., 5MM

90302-435-761 90302435761

4,00 $

Unit Price

BOLT-WASHER, 6X20

93401-0602000 934010602000

1,87 $

Unit Price

SCREW, PAN, 5X12

93500-050120H 93500050120H

Not available

SCREW, PAN, 5X22

93500-050220A 93500050220A

1,87 $

Unit Price

NUT, HEX., 8MM

94002-080000S 94002080000S

1,87 $

Unit Price

NUT FLANGE 6MM

94050-06000

Not available

E-RING, 3MM

94540-03018 9454003018

2,13 $

Unit Price

BOLT, FLANGE, 6X12

95701-0601200 957010601200

1,60 $

Unit Price

BOLT, FLANGE, 6X16

96001-0601607 960010601607

2,22 $

Unit Price

BOOT COMP.

45504-410-003 45504410003

17,36 $

Unit Price

--- GUIDE A, CABLE DE FREIN AR.

43458-GCS-000 43458GCS000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

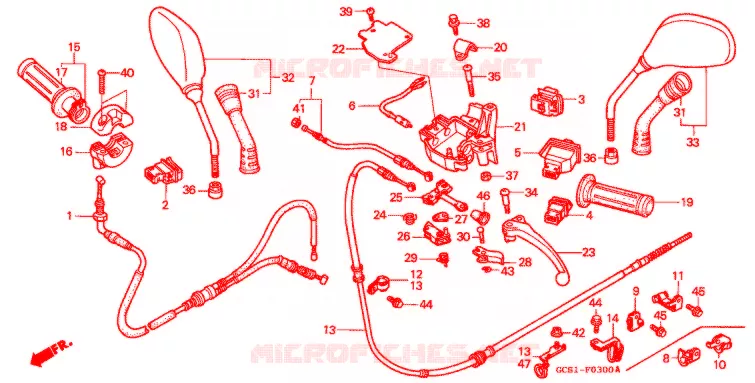

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the LEVER - SWITCH - CABLE (2) of your Honda NH 100 LEAD of LEAD. Let us know if you have any questions.
