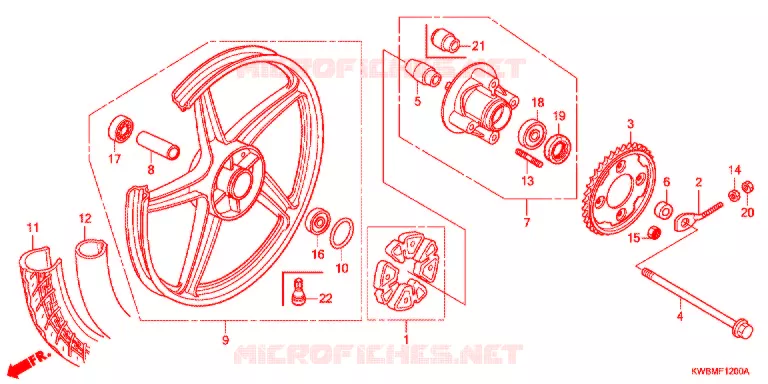

REAR WHEEL (AFP110MCS / AFP110KCS / AFP110CSF) FOR HONDA WAVE DASH 110, KICK START 2011

FUEL TANK (AFP110MCSB / C / D / AFP110KCSB)

DAMPER SET, WHEEL

06410-KWB-600 06410KWB600

16,56 $

Unit Price

ADJUSTER, R. CHAIN

40543-KWW-A00 40543KWWA00

Not available

SPROCKET COMP., FINAL DRIVEN (37T)

41200-KWB-840 41200KWB840

Not available

AXLE, RR. WHEEL

42301-KWB-600 42301KWB600

Not available

SLEEVE, RR. WHEEL

42303-KWB-600 42303KWB600

16,19 $

Unit Price

COLLAR, RR. WHEEL SIDE

42304-KFM-900 42304KFM900

Not available

FLANGE SUB ASSY., FINAL DRIVEN

42615-KWB-840 42615KWB840

Not available

COLLAR, RR. AXLE DISTANCE

42620-KFL-850 42620KFL850

12,27 $

Unit Price

--- ENS. AUXILIAIRE DE ROUE AR. *NH303M*(NH303M GRIS MAT METALLIQUE) *NH303M*

42650-KWW-D11ZA 42650KWWD11ZA

Not available

O-RING, 40.5X3 (NIPPON DUST KEEPER)

42653-001-004 42653001004

3,75 $

Unit Price

--- PNEU AR. (IRC) (80/90-17M/C 50P)

42711-KTM-972 42711KTM972

Not available

--- CHAMBRE A AIR (IRC) (80/90-17M/C)

42712-KTM-972 42712KTM972

Not available

BOLT, STUD, 8X18

90128-KWB-600 90128KWB600

5,70 $

Unit Price

NUT, SPECIAL, 6MM

90302-KBP-900 90302KBP900

3,27 $

Unit Price

NUT, U, 8MM

90309-KPH-971 90309KPH971

5,12 $

Unit Price

BEARING, RADIAL BALL, 6201U (NTN)

91052-KWB-601 91052KWB601

Not available

BEARING, RADIAL BALL, 6201U

96140-6201010 961406201010

10,89 $

Unit Price

BEARING, RADIAL BALL, 6301U (NTN)

91053-KWB-601 91053KWB601

13,78 $

Unit Price

BEARING, RADIAL BALL, 6301U

96140-6301010 961406301010

13,61 $

Unit Price

--- ROULEMENT A BILLES RADIAL, 6203U (NTN)

91054-KWB-601 91054KWB601

Not available

BEARING, RADIAL BALL, 6203U

96140-6203010 961406203010

14,61 $

Unit Price

DUST SEAL 27X40X4

91251-KGH-901

91251-KGH-902

1,57 $

Unit Price

DUST SEAL, 27X40X4.5 (NOK)

91251-KGH-902 91251KGH902

1,57 $

Unit Price

NUT HEX 6MM

94001-060000S

94001-06200

1,72 $

Unit Price
