CLUTCH

CLUTCH FOR HONDA WAVE DASH 110 S, REPSOL EDITION 2012

OIL PUMP

Item numbers

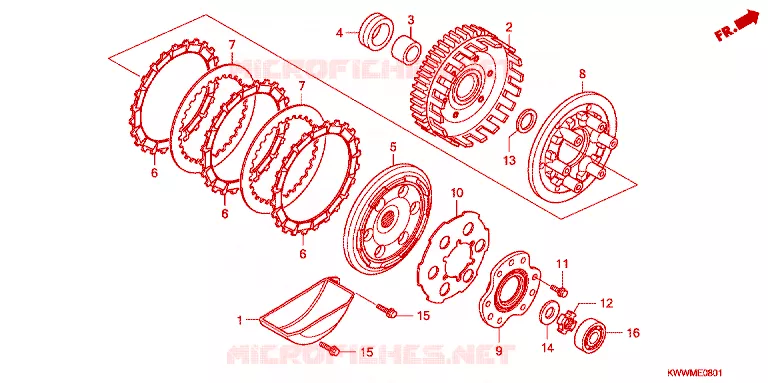

CLUTCH Honda MOTO 110 WAVE 2012 AFP110MCSC
1
2
3
4
5
6
6
6
7
7
8
9
10
11
12
13
14
15
15
16
1
PLATE, OIL SEPARATE

15661-GN5-910   15661GN5910

15661GN5910
Not available
2
OUTER COMP., CLUTCH

22110-KWW-A01   22110KWWA01

22110KWWA01
Not available
3
GUIDE, CLUTCH OUTER
GUIDE, CLUTCH OUTER

22115-KPH-900   22115KPH900

22115KPH900

Unit Price

4
COLLAR, CLUTCH OUTER

22116-KWB-600   22116KWB600

22116KWB600
Not available
5
CENTER, CLUTCH

22121-KWW-A01   22121KWWA01

22121KWWA01
Not available
6
DISK, CLUTCH FRICTION
DISK, CLUTCH FRICTION

22201-KWW-A01   22201KWWA01

22201KWWA01
Not available
6
DISK, CLUTCH FRICTION
DISK, CLUTCH FRICTION

22201-KWW-A01   22201KWWA01

22201KWWA01
Not available
6
DISK, CLUTCH FRICTION
DISK, CLUTCH FRICTION

22201-KWW-A01   22201KWWA01

22201KWWA01
Not available
7
PLATE, CLUTCH
PLATE, CLUTCH

22321-KWW-A01   22321KWWA01

22321KWWA01
Not available
7
PLATE, CLUTCH
PLATE, CLUTCH

22321-KWW-A01   22321KWWA01

22321KWWA01
Not available
8
PLATE, CLUTCH PRESSURE

22351-KWW-A01   22351KWWA01

22351KWWA01
Not available
9
--- PLATEAU DE COMMANDE D'EMBRAYAGE

22361-KWW-A01   22361KWWA01

22361KWWA01
Not available
10
SPRING, CLUTCH

22401-KWW-A01   22401KWWA01

22401KWWA01
Not available
11
--- BOULON DE BRIDE SPECIAL, 5X16

90050-KWW-A01   90050KWWA01

90050KWWA01
Not available
12
NUT B, LOCK, 14MM

90231-198-010   90231198010

90231198010

Unit Price

13
WASHER, THRUST, 17MM

90403-KWW-A01   90403KWWA01

90403KWWA01
Not available
14
WASHER 26X14XT3

90501-GBL-730  

90501-GAH-000
 90501GBL730

Unit Price

15
BOLT, FLANGE, 6X20
BOLT, FLANGE, 6X20

95701-0602000   957010602000

957010602000

Unit Price

15
BOLT, FLANGE, 6X20
BOLT, FLANGE, 6X20

95701-0602000   957010602000

957010602000

Unit Price

16
BEARING, RADIAL BALL, 6200

96100-6200000   961006200000

961006200000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Honda, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Honda 2012 WAVE DASH 110 S, REPSOL EDITION
