LEFT CRANKCASE COVER - ALTERNATOR (2)

VARIATOR - KICK STARTER SPINDLE FOR HONDA DIO 110 2017

CLUTCH

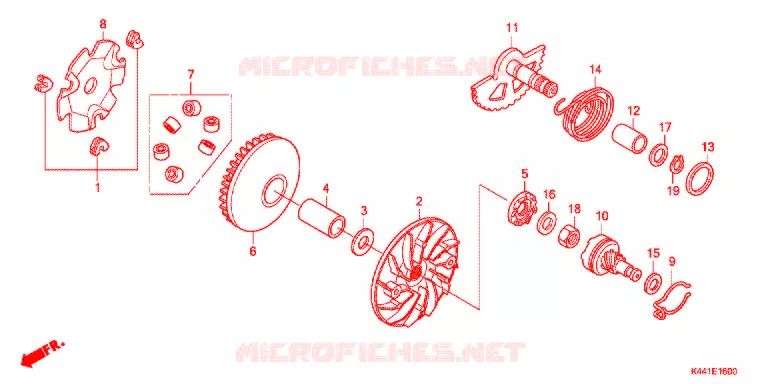

VARIATOR - KICK STARTER SPINDLE Honda SCOOTER 110 DIO 2017 NSC110CBFH
1
PIECE SET, SLIDE
PIECE SET, SLIDE

22011-KVB-T00   22011KVBT00

22011KVBT00
Not available
2
FACE, DRIVE (64T)
FACE, DRIVE (64T)

22102-K44-V00   22102K44V00

22102K44V00
Not available
3
--- RONDELLE, 15X25X2
--- RONDELLE, 15X25X2

22103-K44-V00   22103K44V00

22103K44V00
Not available
4
BOSS, DRIVE FACE
BOSS, DRIVE FACE

22105-K44-V00   22105K44V00

22105K44V00
Not available
5
RATCHET, STARTER
RATCHET, STARTER

22109-KZL-840   22109KZL840

22109KZL840

Unit Price

6
FACE COMP., MOVABLE DRIVE
FACE COMP., MOVABLE DRIVE

22110-K44-V00   22110K44V00

22110K44V00
Not available
7
ROLLER SET, WEIGHT

22123-K44-V00   22123K44V00

22123K44V00
Not available
8
PLATE, RAMP
PLATE, RAMP

22131-KVB-900   22131KVB900

22131KVB900
Not available
9
SPRING, KICK DRIVEN GEAR
SPRING, KICK DRIVEN GEAR

28223-KZL-840   28223KZL840

28223KZL840

Unit Price

10
GEAR COMP., KICK DRIVEN (7T)
GEAR COMP., KICK DRIVEN (7T)

28230-KZL-840   28230KZL840

28230KZL840

Unit Price

11
SPINDLE COMP., KICK STARTER
SPINDLE COMP., KICK STARTER

28250-KZR-600   28250KZR600

28250KZR600
Not available
12
BUSH, KICK SPINDLE (NTN)
BUSH, KICK SPINDLE (NTN)

28253-KVB-900   28253KVB900

28253KVB900
Not available
13
COLLAR, KICK BOSS
COLLAR, KICK BOSS

28255-GS6-000   28255GS6000

28255GS6000

Unit Price

14
SPRING, KICK RETURN (CHUO HATSUJO)
SPRING, KICK RETURN (CHUO HATSUJO)

28281-KZL-C00   28281KZLC00

28281KZLC00

Unit Price

15
WASHER, THRUST, 10MM

90412-KZL-840   90412KZL840

90412KZL840

Unit Price

16
--- RONDELLE SPECIALE, 14MM
--- RONDELLE SPECIALE, 14MM

90426-KZL-840   90426KZL840

90426KZL840
Not available
17
WASHER, 16X22
WASHER, 16X22

90439-443-740   90439443740

90439443740
Not available
18
NUT, HEX., 14MM
NUT, HEX., 14MM

94030-14200   9403014200

9403014200

Unit Price

19
CIRCLIP, EXTERNAL, 16MM
CIRCLIP, EXTERNAL, 16MM

94511-16000   9451116000

9451116000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the VARIATOR - KICK STARTER SPINDLE of your Honda DIO 110 of DIO. Let us know if you have any questions.

Genuine parts for Honda 2017 DIO 110

Engine Frame

Honda 2017 DIO 110

Please choose your model in the list above and click on its Genuine Spare Parts Catalogue

Color : NHA76
110 DIO 2017 NSC110CBFH
Color : NHA76

DIO 110

Honda DIO

Displacement: 110 cc
Year: 2017
Model code NSC110CBFH
Color: NHA76
Drapeau JAPAN
Japan

Technical specifications

Engine oil quantity:
0,80 Liters
