CLUTCH FOR HONDA SCV 110 DIO REPSOL 2022

CLUTCH

Item numbers

OUTER COMP., CLUTCH (F.C.C.)

22100-KWP-D01 22100KWPD01

45,39 $

Unit Price

PLATE COMP., DRIVE (F.C.C.)

22350-K0L-D01 22350K0LD01

Not available

PLATE, CLUTCH SIDE

22361-KWP-D00 22361KWPD00

2,13 $

Unit Price

SPRING, CLUTCH

22401-KVB-900 22401KVB900

6,20 $

Unit Price

SPRING, CLUTCH

22401-KVB-900 22401KVB900

6,20 $

Unit Price

SPRING, CLUTCH

22401-KVB-900 22401KVB900

6,20 $

Unit Price

WEIGHT SET, CLUTCH (F.C.C.)

22535-K0L-D00 22535K0LD00

Not available

RUBBER, CLUTCH DAMPER

22804-148-000 22804148000

4,06 $

Unit Price

RUBBER, CLUTCH DAMPER

22804-148-000 22804148000

4,06 $

Unit Price

RUBBER, CLUTCH DAMPER

22804-148-000 22804148000

4,06 $

Unit Price

BELT, DRIVE (BANDO)

23100-K0P-D01 23100K0PD01

Not available

BELT, DRIVE (GATES)

23100-K0P-D02 23100K0PD02

Not available

FACE SET, DRIVEN

23205-K0L-D00 23205K0LD00

Not available

FACE SET, MOVABLE DRIVEN

23224-K0L-D00 23224K0LD00

Not available

PIN, ROLLER GUIDE

23225-KSY-900 23225KSY900

4,08 $

Unit Price

PIN, ROLLER GUIDE

23225-KSY-900 23225KSY900

4,08 $

Unit Price

PIN, ROLLER GUIDE

23225-KSY-900 23225KSY900

4,08 $

Unit Price

ROLLER GUIDE

23226-KVB-900

23226-GFM-900

4,08 $

Unit Price

SPRING, DRIVEN FACE (F.C.C.)

23233-K0P-D01 23233K0PD01

Not available

COLLAR, SEAL

23237-K0L-D01 23237K0LD01

Not available

COLLAR, SPRING

23238-KWP-900 23238KWP900

2,63 $

Unit Price

NUT, SPECIAL, 28MM

90202-KPL-900 90202KPL900

1,19 $

Unit Price

WASHER, 12.2X29X2.5

90441-GY6-940 90441GY6940

5,41 $

Unit Price

CIRCLIP, INTERNAL, 28MM

90601-KWP-900 90601KWP900

0,63 $

Unit Price

CIRCLIP, 7MM

90605-166-720 90605166720

2,84 $

Unit Price

CIRCLIP, 7MM

90605-166-720 90605166720

2,84 $

Unit Price

CIRCLIP, 7MM

90605-166-720 90605166720

2,84 $

Unit Price

BEARING, RADIAL BALL, 6902U (F.C.C.)

91004-GGC-G01 91004GGCG01

16,28 $

Unit Price

BEARING, RADIAL BALL, 6902U (NSK)

91009-KVY-961 91009KVY961

19,18 $

Unit Price

BEARING, NEEDLE, 20X29X18 (F.C.C.)

91109-GGC-G01 91109GGCG01

22,14 $

Unit Price

BEARING, NEEDLE, 20X29X18 (SCHAEFFLER)

91109-KVY-902 91109KVY902

Not available

OIL SEAL, 34X39X3

91211-K0L-D01 91211K0LD01

Not available

OIL SEAL, 34X39X3

91211-K0L-D01 91211K0LD01

Not available

SEAL DRIVEN FACE --- JOINT DE FACE MENEE, 34X39X3

91211-K24-901 91211K24901

2,71 $

Unit Price

SEAL DRIVEN FACE --- JOINT DE FACE MENEE, 34X39X3

91211-K24-901 91211K24901

2,71 $

Unit Price

O-RING, PINION CAP

91351-642-000 91351642000

7,10 $

Unit Price

O-RING, 38.5X2

91351-GR1-000 91351GR1000

5,23 $

Unit Price

NUT, HEX., 12MM

94030-12200 9403012200

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

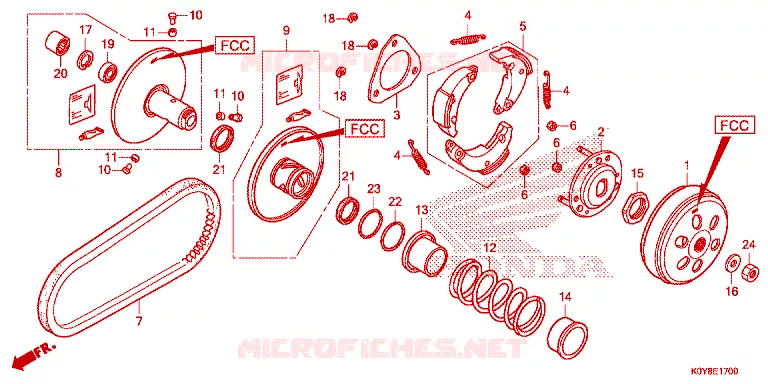

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CLUTCH of your Honda SCV 110 DIO REPSOL of DIO. Let us know if you have any questions.
