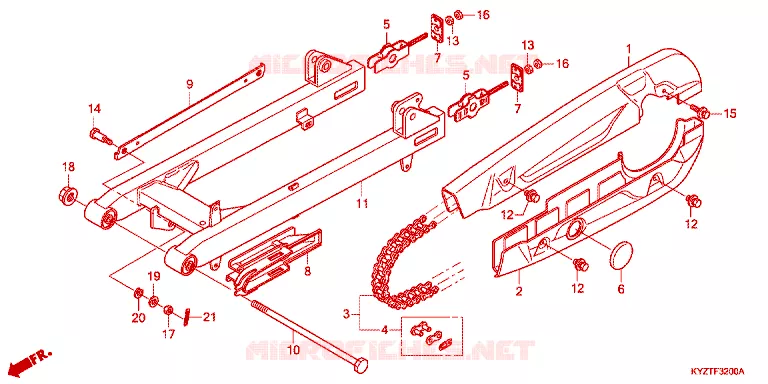

SWING ARM FOR HONDA WAVE 125 ELECTRIC START, CAST WHEELS 2014

REAR SHOCK ABSORBER

Item numbers

--- CASE, DRIVE CHAIN UPPER HALF *NH364M* (NH364M SHEEN SILVER METALLIC) *40510KYZV00*

40510-KYZ-V00ZB 40510KYZV00ZB

Not available

--- CASE, DRIVE CHAIN UNDER HALF *NH364M* (NH364M SHEEN SILVER METALLIC) *40520KYZV00*

40520-KYZ-V00ZB 40520KYZV00ZB

Not available

CHAIN, DRIVE (135 OR-A-108LE) (DID420AD-108RB)

40530-KYZ-T01 40530KYZT01

Not available

JOINT, DRIVE CHAIN (DAIDO)

40531-KWB-601 40531KWB601

6,90 $

Unit Price

ADJUSTER, CHAIN

40543-KPG-T00 40543KPGT00

Not available

ADJUSTER, CHAIN

40543-KPG-T00 40543KPGT00

Not available

CAP, CHAIN CASE PEEP HOLE

40545-001-000 40545001000

6,53 $

Unit Price

CAP, SWINGARM END

40546-KPG-T00 40546KPGT00

Not available

CAP, SWINGARM END

40546-KPG-T00 40546KPGT00

Not available

PACKING, DRIVE CHAIN CASE

40591-KYZ-V00 40591KYZV00

Not available

ARM, RR. BRAKE STOPPER

43431-KWW-640 43431KWW640

Not available

BOLT, SWINGARM PIVOT

52101-KYZ-910 52101KYZ910

Not available

SWINGARM SUB ASSY., RR. *NH364M* (NH364M SHEEN SILVER METALLIC) *52200KYZV00*

52200-KYZ-V00ZB 52200KYZV00ZB

Not available

BOLT-WASHER, 6X6

90118-383-000 90118383000

Not available

BOLT-WASHER, 6X6

90118-383-000 90118383000

Not available

BOLT-WASHER, 6X6

90118-383-000 90118383000

Not available

NUT, SPECIAL, 6MM

90302-KBP-900 90302KBP900

3,27 $

Unit Price

NUT, SPECIAL, 6MM

90302-KBP-900 90302KBP900

3,27 $

Unit Price

BOLT A, STOPPER ARM

92812-10000 9281210000

3,74 $

Unit Price

BOLT-WASHER, 6X10

93401-0601000 934010601000

Not available

NUT HEX 6MM

94001-060000S

94001-06200

1,72 $

Unit Price

NUT, HEX., 8MM

94001-080000S 94001080000S

1,53 $

Unit Price

NUT, HEX., 10MM

94031-10000 9403110000

1,80 $

Unit Price

WASHER, PLAIN, 8MM

94101-08000 9410108000

1,06 $

Unit Price

WASHER, SPRING, 10MM

94111-10000 9411110000

1,82 $

Unit Price

PIN, SPLIT, 2.0X15

94201-20150 9420120150

0,84 $

Unit Price
