Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

GEARSHIFT DRUM

KICKSTARTER AXLE FOR HONDA WAVE 125 ELECTRIC START, CAST WHEELS 2023

THROTTLE BODY

Item numbers

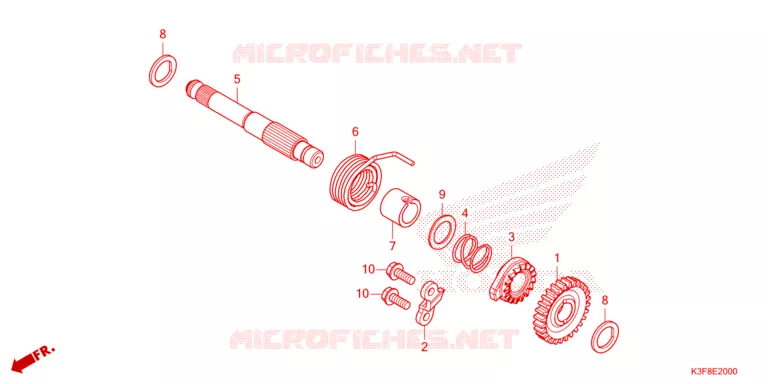

KICKSTARTER AXLE Honda MOTO 125 WAVE 2023 AFS125CSFP
1
2
3
4
5
6
7
8
8
9
10
10
1
PINION, KICK STARTER (27T)

28211-K2E-T10   28211K2ET10

28211K2ET10

Unit Price

2
PLATE, KICK STOPPER

28215-K1M-T00   28215K1MT00

28215K1MT00

Unit Price

3
RATCHET, STARTER

28221-K1M-T00   28221K1MT00

28221K1MT00

Unit Price

4
SPRING, RATCHET

28223-K1M-T00   28223K1MT00

28223K1MT00

Unit Price

5
SPINDLE, KICK STARTER

28251-K1M-T00   28251K1MT00

28251K1MT00

Unit Price

6
SPRING, KICK RETURN

28281-K1M-T00   28281K1MT00

28281K1MT00

Unit Price

7
COLLAR, KICK SPRING

28282-K1M-T00   28282K1MT00

28282K1MT00

Unit Price

8
WASHER SPL 14MM --- RONDELLE SPECIALE, 14MM
WASHER SPL 14MM --- RONDELLE SPECIALE, 14MM

90451-KGH-900   90451KGH900

90451KGH900

Unit Price

8
WASHER SPL 14MM --- RONDELLE SPECIALE, 14MM
WASHER SPL 14MM --- RONDELLE SPECIALE, 14MM

90451-KGH-900   90451KGH900

90451KGH900

Unit Price

9
WASHER 16 2X23 --- RONDELLE, 16.2X23

90452-K1M-T00   90452K1MT00

90452K1MT00

Unit Price

10
BOLT, FLANGE, 6X16
BOLT, FLANGE, 6X16

95701-0601600   957010601600

957010601600

Unit Price

10
BOLT, FLANGE, 6X16
BOLT, FLANGE, 6X16

95701-0601600   957010601600

957010601600

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Honda, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Honda 2023 WAVE 125 Electric start, Cast wheels
