CRANKCASE (2)

CRANKSHAFT / PISTON (2) FOR HONDA XRM 125 MOTARD, CASTED WHEELS 2010

TRANSMISSION (2)

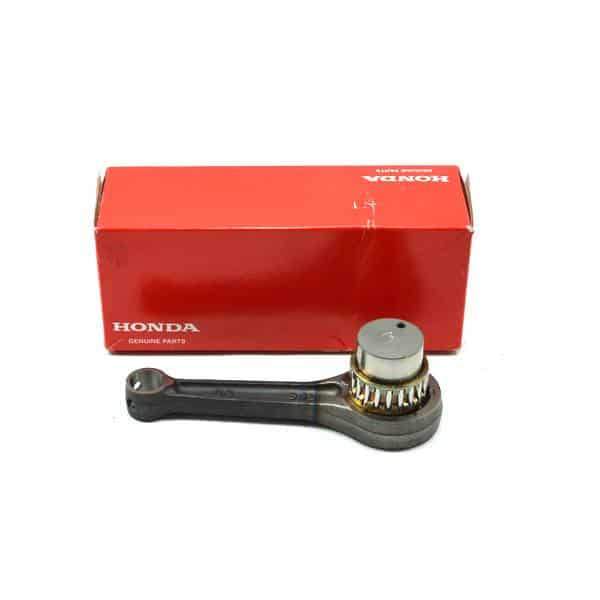

ROD KIT, CONNECTING

06381-KPH-900 06381KPH900

Not available

CRANKSHAFT COMP.

13000-KPH-900 13000KPH900

Not available

RING SET, PISTON (STD.)

13011-KPH-900 13011KPH900

Not available

RING SET, PISTON (0.25)

13021-KPH-900 13021KPH900

Not available

RING SET, PISTON (0.50)

13031-KPH-900 13031KPH900

Not available

RING SET, PISTON (0.75)

13041-KPH-900 13041KPH900

Not available

RING SET, PISTON (1.00)

13051-KPH-900 13051KPH900

Not available

PISTON (STD.)

13101-KTM-D20 13101KTMD20

Not available

PISTON (0.25)

13102-KPH-305 13102KPH305

Not available

PISTON (0.50)

13103-KPH-305 13103KPH305

Not available

PISTON (0.75)

13104-KPH-305 13104KPH305

Not available

PISTON (1.00)

13105-KPH-305 13105KPH305

Not available

PIN PISTON

13111-087-000

13111-GB0-910

15,72 $

Unit Price

CLIP, PISTON PIN, 13MM

13115-GN5-910 13115GN5910

1,29 $

Unit Price

CRANKSHAFT COMP., R.

13310-KPH-900 13310KPH900

Not available

CRANKSHAFT, L.

13321-KPH-900 13321KPH900

Not available

SPROCKET, TIMING (17T)

14311-KPH-900 14311KPH900

Not available

GEAR, OIL PUMP DRIVE (19T)

15341-KPH-900 15341KPH900

32,35 $

Unit Price

KEY WOODRUFF 25X1

90741-003-010

90741-003-000

5,43 $

Unit Price

BEARING, RADIAL BALL, 63/22 (SKF)

91001-KPH-881 91001KPH881

Not available

BEARING, RADIAL BALL, 63/22 (FUJIKOSHI)

91001-KPH-901 91001KPH901

34,11 $

Unit Price

BEARING, RADIAL BALL, 63/22 (NTN)

91001-KWB-601 91001KWB601

32,80 $

Unit Price

BEARING, RADIAL BALL, 63/22 (SKF)

91002-KPH-881 91002KPH881

Not available

BEARING, RADIAL BALL, 63/22 (FUJIKOSHI)

91002-KPH-901 91002KPH901

Not available

DOWEL PIN, 3X5

94303-03050 9430303050

2,12 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Honda, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
