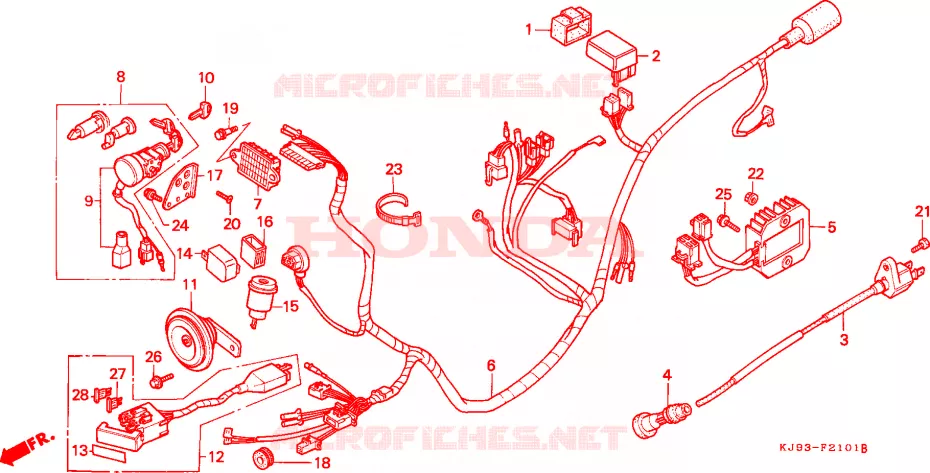

WIRE HARNESS (CH125J / L / M / N / P / R) FOR HONDA CH 125 SPACY 1990

FRAME (CH125J / L / M / N / P / R)

CUSHION CDI UNIT

30401-KF0-000

Not available

C.D.I. UNIT

30410-KV8-660 30410KV8660

Not available

COIL COMP IGN

30510-GN3-700

30510-KG0-003

113,95 $

Unit Price

CAP ASSY., NOISE SUPPRESSOR

30700-KN7-671 30700KN7671

Not available

CAP ASSY NOISE(SU

30700-KN7-670

Not available

RECTIFIER ASSY R

31600-413-008

Not available

HARNESS, WIRE

32100-KV8-660 32100KV8660

Not available

MULTI-COUPLER, 15X5 (MALE)

32150-GE8-601 32150GE8601

Not available

KEY SET

35010-KV8-000 35010KV8000

Not available

SWITCH ASSY., COMBINATION LOCK

35100-KV8-003 35100KV8003

Not available

SWITCH ASSY., COMBINATION LOCK

35100-KV8-013 35100KV8013

Not available

KEY, BLANK (TYPE 1) (KEY NO. AXX / BXX)

35121-KG8-900 35121KG8900

Not available

KEY, BLANK (TYPE 2) (KEY NO. CXX / DXX)

35122-KG8-900 35122KG8900

Not available

HORN COMP.

38110-ML7-870 38110ML7870

Not available

BOX ASSY., FUSE

38200-KV7-670 38200KV7670

Not available

LABEL, FUSE

38215-KV7-670 38215KV7670

Not available

RELAY COMP WINKER

38301-KJ6-743

38301-KG0-014

55,24 $

Unit Price

SUSPENSION, WINKER RELAY (MITSUBA)

38306-KK4-000 38306KK4000

5,37 $

Unit Price

STAY, HANDLE LOCK

53128-KJ9-000 53128KJ9000

Not available

GROMMET, INNER BOX

64407-KM1-000 64407KM1000

Not available

BOLT, FLANGE, 6MM

90111-162-000 90111162000

3,78 $

Unit Price

SCREW, U-LOCK FLAT, 6X12

90164-028-000 90164028000

2,31 $

Unit Price

BOLT HEX 5X20

92000-050200A

92301-050200A

0,84 $

Unit Price

NUT, FLANGE, 6MM

94050-06080 9405006080

Not available

BAND B3, WIRE

95014-62300 9501462300

3,48 $

Unit Price

BOLT FLANG 6X12

95700-0601200

95701-0601210

1,60 $

Unit Price

BOLT FLANG 6X16

95700-0601600

95701-0601500

2,32 $

Unit Price

BOLT FLANGE 8X12

95700-0801200

95701-0801200

1,87 $

Unit Price

FUSE, BLADE (5A)

98200-30500 9820030500

1,41 $

Unit Price

FUSE, BLADE (10A)

98200-31000 9820031000

1,41 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WIRE HARNESS (CH125J/L/M/N/P/R) of your Honda CH 125 SPACY of SPACY. Let us know if you have any questions.
