TAILLIGHT (4)

WIRE HARNESS (CH125J / L / M / N / P / R) FOR HONDA CH 125 SPACY 1994

FRAME (CH125J / L / M / N / P / R)

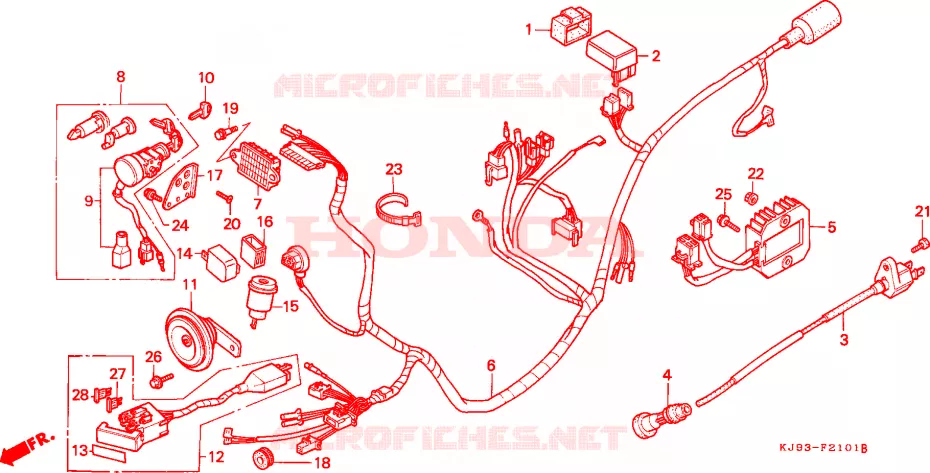

WIRE HARNESS (CH125J/L/M/N/P/R) Honda SCOOTER 125 SPACY 1994 CH125R
1
CUSHION C D I UNI

30401-KK0-770  

30401KK0770
Not available
2
C.D.I. UNIT

30410-KV8-004   30410KV8004

30410KV8004
Not available
3
COIL COMP., IGNITION

30510-KV8-680   30510KV8680

30510KV8680
Not available
4
CAP ASSY., NOISE SUPPRESSOR

30700-KN7-671   30700KN7671

30700KN7671
Not available
5
RECTIFIER ASSY., REGULATE

31600-KV8-681   31600KV8681

31600KV8681
Not available
6
HARNESS, WIRE

32100-KV8-730   32100KV8730

32100KV8730
Not available
7
MULTI-COUPLER, 15X5 (MALE)
MULTI-COUPLER, 15X5 (MALE)

32150-GE8-601   32150GE8601

32150GE8601

Unit Price

8
KEY SET

35010-KV8-680   35010KV8680

35010KV8680
Not available
9
SWITCH ASSY., COMBINATION & LOCK

35100-KV8-680   35100KV8680

35100KV8680
Not available
10
KEY, BLANK (TYPE 1) (KEY NO. AXX / BXX)

35121-KV8-680   35121KV8680

35121KV8680
Not available
10
KEY, BLANK (TYPE 2) (KEY NO. CXX / DXX)

35122-KV8-680   35122KV8680

35122KV8680
Not available
11
HORN COMP.

38110-KV8-681   38110KV8681

38110KV8681
Not available
12
BOX ASSY., FUSE

38200-KV8-620   38200KV8620

38200KV8620
Not available
13
LABEL, FUSE

38215-KV7-730   38215KV7730

38215KV7730
Not available
15
RELAY COMP., AUDIBLE PILOT & WINKER

38301-KM1-832   38301KM1832

38301KM1832
Not available
17
STAY, HANDLE LOCK

53128-KJ9-000   53128KJ9000

53128KJ9000
Not available
18
GROMMET, INNER BOX

64407-KM1-000   64407KM1000

64407KM1000
Not available
19
BOLT, FLANGE, 6MM
BOLT, FLANGE, 6MM

90111-162-000   90111162000

90111162000

Unit Price

20
SCREW, U-LOCK FLAT, 6X12

90164-028-000   90164028000

90164028000

Unit Price

21
BOLT, HEX., 5X20

92101-050200A   92101050200A

92101050200A

Unit Price

22
NUT, FLANGE, 6MM
NUT, FLANGE, 6MM

94050-06080   9405006080

9405006080
Not available
22
NUT FLANGE 6MM

94050-06000  

9405006000
Not available
23
BAND B3, WIRE

95014-62300   9501462300

9501462300

Unit Price

24
BOLT, FLANGE, 6X12
BOLT, FLANGE, 6X12

95701-0601200   957010601200

957010601200

Unit Price

25
BOLT, FLANGE, 6X16
BOLT, FLANGE, 6X16

95701-0601600   957010601600

957010601600

Unit Price

26
BOLT, FLANGE, 8X12
BOLT, FLANGE, 8X12

95701-0801200   957010801200

957010801200

Unit Price

27
FUSE, BLADE (5A)

98200-30500   9820030500

9820030500

Unit Price

28
FUSE, BLADE (10A)

98200-31000   9820031000

9820031000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WIRE HARNESS (CH125J/L/M/N/P/R) of your Honda CH 125 SPACY of SPACY. Let us know if you have any questions.
