Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRONT FENDER

FRONT FORK FOR HONDA GL 150 2012

FRONT BRAKE PANEL - SHOES

Item numbers

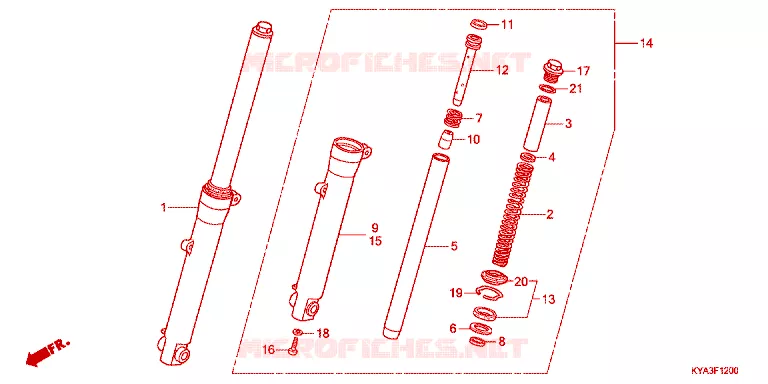

FRONT FORK Honda MOTO 150 GL 2012 GL1501WHC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
FORK ASSY., R. FR.

51400-KYA-B00   51400KYAB00

51400KYAB00
Not available
2
SPRING, FR. FORK

51401-KYA-600   51401KYA600

51401KYA600
Not available
3
COLLAR, SPRING

51403-KYA-600   51403KYA600

51403KYA600
Not available
4
PLATE, SPRING JOINT

51404-KYA-600   51404KYA600

51404KYA600
Not available
5
PIPE COMP., FR. FORK

51410-KYA-600   51410KYA600

51410KYA600
Not available
6
RING, BACK UP

51412-KTT-900   51412KTT900

51412KTT900
Not available
7
SPRING, REBOUND

51413-KYA-600   51413KYA600

51413KYA600
Not available
8
GUIDE, FR. FORK

51414-KTT-900   51414KTT900

51414KTT900
Not available
9
CASE, R. BOTTOM

51420-KYA-B00   51420KYAB00

51420KYAB00
Not available
10
PIECE, OIL LOCKING

51432-KVX-600   51432KVX600

51432KVX600
Not available
11
RING, PISTON

51437-KTT-900   51437KTT900

51437KTT900
Not available
12
PIPE, SEAT

51440-KYA-B00   51440KYAB00

51440KYAB00
Not available
13
SEAL SET, FR. FORK

51490-KTT-900   51490KTT900

51490KTT900
Not available
14
FORK ASSY., L. FR.

51500-KYA-B00   51500KYAB00

51500KYAB00
Not available
15
CASE, L. BOTTOM

51520-KYA-B00   51520KYAB00

51520KYAB00
Not available
16
BOLT, SOCKET, 8MM

90116-KTT-900   90116KTT900

90116KTT900
Not available
17
BOLT, FR. FORK

90123-KVX-600   90123KVX600

90123KVX600
Not available
18
WASHER, SPECIAL, 8MM

90544-KTT-900   90544KTT900

90544KTT900
Not available
19
RING, OIL SEAL STOP

90601-KTT-900   90601KTT900

90601KTT900
Not available
20
SEAL, DUST

91254-KTT-900   91254KTT900

91254KTT900
Not available
21
O-RING, 23X2.8

91351-KTT-900   91351KTT900

91351KTT900
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Honda, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Honda 2012 GL 150

Engine Frame

Honda 2012 GL 150

Select your GL 150 in the list above and click on its Genuine Spare Parts Catalog

150 GL 2012 GL1501WHC

GL 150

Honda GL

Displacement: 150 cc
Year: 2012
Model code GL1501WHC
Color: NH196 / R201
