Displacement

Model

Year

Finish line

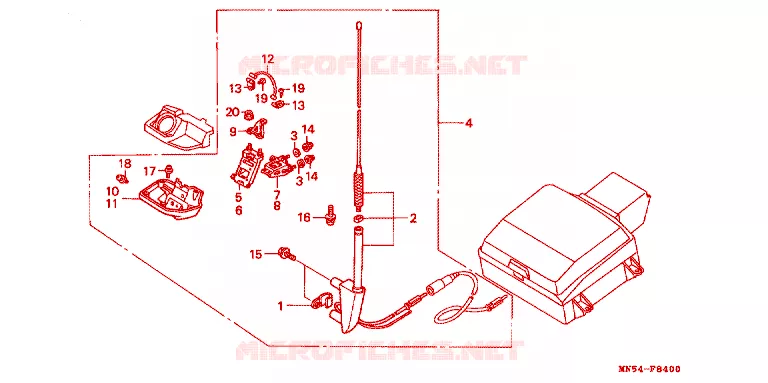

ANTENNA - ARM REST FOR HONDA GL 1500 GOLD WING INTERSTATE 1990

(1) 32111-426-000

CLAMPER, A.C. GENERATOR CORD

(2) 39150-MAM-003

ANTENNA ASSY., RADIO

(3) 52427-KM4-003

WASHER, PLAIN

(4) 81015-MT8-000ZA

Color of the vehicle: 81015MT8000
Color of the vehicle: 81015MT8000

TRUNK ARM *TYPE4* --- ENS. SUPPORT DE TIGE DE COFFRE *TYPE4* (NH188L) GRIS PIGEON *81015MT8000*

(4) 81015-MT8-000ZB

Color of the vehicle: 81015MT8000
Color of the vehicle: 81015MT8000

--- ENS. SUPPORT DE TIGE DE COFFRE *TYPE5* (B75L) BLEU PIGEON *81015MT8000*

(5) 81130-MN5-000

HINGE COMP., R. TRUNK

(6) 81131-MN5-000

HINGE COMP., L. TRUNK

(7) 81136-MN5-000

BRACKET, R. TRUNK HINGE (B)

(8) 81137-MN5-000

BRACKET, L. TRUNK HINGE (B)

(9) 81139-MN5-000

STIFFENER, TRUNK LID

(10) 81154-MN5-000ZD

Color of the vehicle: 81154MN5000
Color of the vehicle: 81154MN5000

BODY, R. ARMREST *TYPE4* (NH188L) (NH188L) GRIS PIGEON (TYPE4 ) *81154MN5000*

(10) 81154-MN5-000ZE

Color of the vehicle: 81154MN5000
Color of the vehicle: 81154MN5000

BODY, R. ARMREST *TYPE5* (B75L) (TYPE5 ) *81154MN5000*

(11) 81156-MN5-000ZD

Color of the vehicle: 81156MN5000
Color of the vehicle: 81156MN5000

BODY, L. ARMREST *TYPE4* (NH188L) (NH188L) GRIS PIGEON (TYPE4 ) *81156MN5000*

(11) 81156-MN5-000ZE

Color of the vehicle: 81156MN5000
Color of the vehicle: 81156MN5000

BODY, L. ARMREST *TYPE5* (B75L) (TYPE5 ) *81156MN5000*

(12) 81250-MN5-000

STOPPER, TRUNK LID

(13) 81254-MN5-000

STAY B, LID STOPPER

(14) 90167-SA0-980

NUT, FLANGE CAP, 5MM

(15) 93401-0601608

BOLT-WASHER, 6X16

(16) 93893-0501007

SCREW-WASHER, 5X10

(17) 93893-0501207

SCREW-WASHER, 5X12

(18) 93894-0501207

SCREW-WASHER, 5X12

(19) 93903-24380

SCREW, TAPPING, 4X12

(20) 94050-05080

NUT, FLANGE, 5MM

	Part number	Description	Qty
# 1	32111-460-780 32111460780	CLAMPER, A.C. GENERATOR CORD	Contact	0,00 $
# 2	39150-MN5-013 39150MN5013	ANTENNA ASSY., RADIO	Contact	0,00 $
# 3	52427-KM4-003 52427KM4003 52427KM4003	WASHER, PLAIN	Contact	0,00 $
# 4	81015-MT8-000ZB 81015MT8000ZB 81015MT8000ZB	--- ENS. SUPPORT DE TIGE DE COFFRE TYPE5 (B75L) BLEU PIGEON 81015MT8000	Contact	0,00 $
# 4	81015-MT8-000ZA 81015MT8000ZA 81015MT8000ZA	TRUNK ARM TYPE4 --- ENS. SUPPORT DE TIGE DE COFFRE TYPE4 (NH188L) GRIS PIGEON 81015MT8000	Contact	0,00 $
# 5	81130-MN5-000 81130MN5000 81130MN5000	HINGE COMP., R. TRUNK	Not available	0,00 $
# 6	81131-MN5-000 81131MN5000 81131MN5000	HINGE COMP., L. TRUNK	Not available	0,00 $
# 7	81136-MN5-000 81136MN5000 81136MN5000	BRACKET, R. TRUNK HINGE (B)	Not available	0,00 $
# 8	81137-MN5-000 81137MN5000 81137MN5000	BRACKET, L. TRUNK HINGE (B)	Not available	0,00 $
# 9	81139-MN5-000 81139MN5000 81139MN5000	STIFFENER, TRUNK LID	Not available	0,00 $
# 10	81154-MN5-000ZD 81154MN5000ZD 81154MN5000ZD	BODY, R. ARMREST TYPE4 (NH188L) (NH188L) GRIS PIGEON (TYPE4 ) 81154MN5000	Contact	0,00 $
# 10	81154-MN5-000ZE 81154MN5000ZE 81154MN5000ZE	BODY, R. ARMREST TYPE5 (B75L) (TYPE5 ) 81154MN5000	Not available	0,00 $
# 11	81156-MN5-000ZD 81156MN5000ZD 81156MN5000ZD	BODY, L. ARMREST TYPE4 (NH188L) (NH188L) GRIS PIGEON (TYPE4 ) 81156MN5000	Contact	0,00 $
# 11	81156-MN5-000ZE 81156MN5000ZE 81156MN5000ZE	BODY, L. ARMREST TYPE5 (B75L) (TYPE5 ) 81156MN5000	Not available	0,00 $
# 12	81250-MN5-000 81250MN5000 81250MN5000	STOPPER, TRUNK LID	10,73 $
# 13	81254-MN5-000 81254MN5000 81254MN5000	STAY B, LID STOPPER	7,71 $
# 14	90167-SA0-980 90167SA0980 90167SA0980	NUT, FLANGE CAP, 5MM	Contact	0,00 $
# 15	93411-0601608 93401-0601608 934110601608	BOLT-WASHER, 6X16	0,74 $
# 16	93893-0501007 938930501007 938930501007	SCREW-WASHER, 5X10	Contact	0,00 $
# 17	93893-0501207 938930501207 938930501207	SCREW-WASHER, 5X12	1,44 $
# 18	93894-0501207 938940501207 938940501207	SCREW-WASHER, 5X12	1,28 $
# 19	93903-24380 9390324380 9390324380	SCREW, TAPPING, 4X12	1,12 $
# 20	94050-05080 9405005080 9405005080	NUT, FLANGE, 5MM	0,44 $

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ANTENNA - ARM REST of your Honda GL 1500 GOLD WING INTERSTATE of GOLD-WING. Let us know if you have any questions.
