RECOIL STARTER

LEFT CRANKCASE COVER FOR HONDA FOURTRAX 200 SX 1986

ALTERNATOR

COVER, L. CRANKCASE

11341-HB3-000 11341HB3000

Not available

GUIDE, DRIVE CHAIN

11352-HB3-000 11352HB3000

Not available

COVER, REDUCTION GEAR

11355-HB3-000 11355HB3000

Not available

COVER, L. RR.

11361-HB3-000 11361HB3000

Not available

GASKET L COVER

11396-HB3-000

11396-HB3-306

SHAFT, STARTER IDLE (A)

28115-HB3-000 28115HB3000

Not available

SHAFT, STARTER IDLE (B)

28116-HB3-000 28116HB3000

Not available

GEAR, STARTING IDLE (12/48T)

28117-HB3-000 28117HB3000

Not available

GEAR C, STARTING IDLE (21T)

28118-HB3-000 28118HB3000

Not available

CLAMPER, CHANGE SWITCH CORD

32112-HB3-000 32112HB3000

Not available

SWITCH ASSY CHAN

35759-HB3-000

Not available

SWITCH ASSY CHAN

35759-HB3-003

Not available

INDICATOR, NEUTRAL

35762-HB3-000 35762HB3000

Not available

CAP 14MM

90084-428-000

90084-471-000

17,23 $

Unit Price

WASHER, SEALING, 6MM

90441-706-000 90441706000

2,25 $

Unit Price

CIRCLIP, 5MM

90605-230-000 90605230000

4,93 $

Unit Price

OIL SEAL, 22X32X7 (ARAI)

91202-HB3-003 91202HB3003

16,60 $

Unit Price

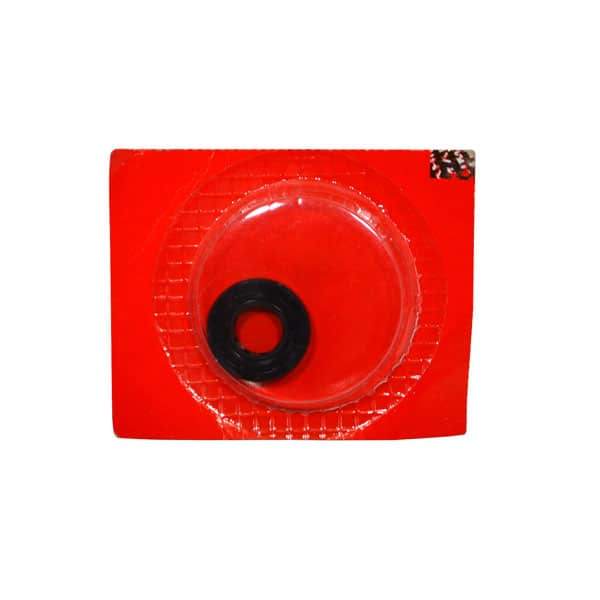

OIL SEAL, 12X24X5 (NOK)

91203-436-004 91203436004

10,40 $

Unit Price

OIL SEAL, 9X18X5

91204-HB3-004 91204HB3004

Not available

O-RING, 45X2.5 (ARAI)

91301-679-003 91301679003

8,35 $

Unit Price

O-RING 13 8X2 5

91303-377-000

91303-MG7-003

5,82 $

Unit Price

SCREW, OVAL, 6X70

93700-060700G 93700060700G

Not available

DOWEL PIN, 8X14

94301-08140 9430108140

3,30 $

Unit Price

PIN, SPRING, 2.5X20

94305-25142 9430525142

Not available

CIRCLIP, EXTERNAL, 12MM

94510-12000 9451012000

2,74 $

Unit Price

BOLT FLANGE 6X40

96000-0601400

96001-0601400

1,56 $

Unit Price

BOLT FLANGE 6X35

96000-0603500

90010-GHB-700

2,10 $

Unit Price

BOLT, FLANGE, 6X28

96300-0602800 963000602800

2,70 $

Unit Price

BOLT, FLANGE, 6X40

96300-0604000 963000604000

2,04 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Honda, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
