FRONT SUSPENSION ARM

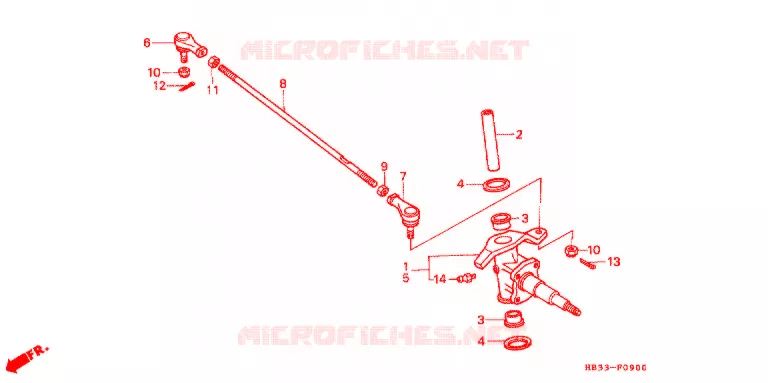

KNUCKLE - TIE ROD FOR HONDA FOURTRAX 200 SX 1987

FRONT BRAKE PANEL - SHOES

KNUCKLE COMP., R.

51210-HB3-010 51210HB3010

Not available

COLLAR, KING PIN

51214-HB3-000 51214HB3000

Not available

BUSH KINGPIN

51215-VM6-000

51215-VM6-003

33,42 $

Unit Price

DUST SEAL, KINGPIN

51217-VM5-003 51217VM5003

8,39 $

Unit Price

DUST SEAL KINGPIN

51217-VM5-004

51217-VM5-003

8,39 $

Unit Price

KNUCKLE COMP., L.

51220-HB3-010 51220HB3010

Not available

JOINT, BALL (RIGHT HAND THREAD)

53150-HB3-003 53150HB3003

95,39 $

Unit Price

JOINT, BALL (LEFT HAND THREAD)

53158-HB3-003 53158HB3003

88,82 $

Unit Price

ROD, TIE

53521-HB3-770 53521HB3770

Not available

NUT, HEX., 10MM (LEFT HAND THREAD)

90311-VM5-010 90311VM5010

4,95 $

Unit Price

NUT, CASTLE, 10MM

90320-601-000 90320601000

Not available

NUT, HEX., 10MM

94030-10200 9403010200

1,87 $

Unit Price

PIN COTTER 2 5MM

94201-25200

94201-25250

1,60 $

Unit Price

NIPPLE, GREASE (A.T6) (M6X1.0)

96201-10000 9620110000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Honda, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Select your FOURTRAX 200 in the list above and click on its Genuine Spare Parts Catalog

FOURTRAX 200 SX

Honda FOURTRAX

Displacement: 200 cc
Year: 1987
Model code TRX200SXH
Color: NH138

Usa

Add to my garage

This is the ATV with 199 cm3 engine, OHC single cylinder, 5 speed, automatic clutch. Upper cowl is white, stripe is gradient light blue to drak blue, seat color is blue, reverse gear and chain drive.
