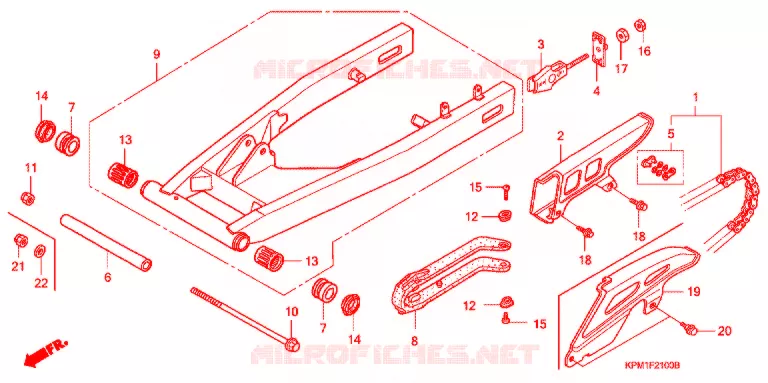

SWINGARM - CHAIN CASE FOR HONDA FTR 223 MODEL STANDARD 2003

REAR SHOCK ABSORBER (2)

(1) 06405-KPM-P00

CHAIN SET DRIVE D --- JEU DE CHAINE DE COMMANDE (DAIDO)(DID520V ZB 120L) (LIAISON STD 110L)

(1) 06405-KPM-P10

CHAIN SET DRIVE R --- JEU DE CHAINE DE COMMANDE (RK EXCEL) (RK520MOZ9 LJFZ 120L) (LIAISON STD 110L)

(1) 18345-MBT-610

RUBBER, PROTECTOR MOUNTING

(2) 28333-300-000

SPRING, KICK STARTER STOPPER

(3) 40543-KS5-000

ADJUSTER, CHAIN

(3) 40514-333-000

PLUG, CHAIN CASE

(4) 50600-MFL-D20

HOLDER, R. MAIN STEP

(4) 40544-KS5-000

RETAINER, CHAIN ADJUSTER

(5) 40545-KPM-305

JOINT, DRIVE CHAIN (DAIDO)

(5) 40545-KPM-306

JOINT, DRIVE CHAIN (RK EXCEL)

(5) 50603-MFL-D20

PIN C, PILLION STEP

(6) 52141-KPM-870

COLLAR, SWINGARM PIVOT

(6) 50610-MFL-000

GUARD, MAIN STEP HEAT

(7) 52142-KPM-000

COLLAR, THRUST PIVOT

(7) 50617-MCJ-750

SPRING, R. STEP RETURN

(8) 50639-MFL-D20

PIN, STEP BAR

(8) 52170-KPM-000

SLIDER, CHAIN

(9) 52200-KPM-870ZA

Color of the vehicle: NH1
Color of the vehicle: NH1

--- BRAS OSCILLANT SECONDAIRE, AR *NH1 * (NH1 NOIR) *NH1 *

(9) 52200-KPM-870ZB

Color of the vehicle: R134
Color of the vehicle: R134

--- BRAS OSCILLANT SECONDAIRE, AR *R134 * (R134 ROUGE COMBAT) *R134 *

(9) 50644-MCJ-750

SPRING, L. STEP RETURN

(10) 50660-MEL-000

ARM, R. MAIN STEP

(10) 90121-KK0-000

BOLT, RR. FORK PIVOT

(11) 50665-MEL-000

ARM, L. MAIN STEP

(11) 90305-GE8-003

NUT, U, 14MM

(12) 50700-MFL-D20

HOLDER, L. MAIN STEP

(12) 90556-MB4-000

WASHER

(13) 91070-GC4-601

BEARING, NEEDLE, 20X26X20 (NTN)

(13) 50707-MFL-000

GUARD, L. STEP

(14) 91251-KFB-003

DUST SEAL SWINGAR --- JOINT ANTIPOUSSIERE PIVOT DU BRASOSCILLANT

(14) 50718-MEE-D00

PLATE, PILLION STEP CLICK

(15) 50720-MEL-D00

ARM, R. PILLION STEP

(15) 93901-25110

SCREW, TAPPING, 5X10

(16) 50730-MEL-D00

ARM, L. PILLION STEP

(16) 94001-080000S

NUT, HEX., 8MM

(17) 50750-MFL-D20

HOLDER, R. PILLION STEP

(17) 94030-08000

NUT, HEX., 8MM

(18) 50760-MFL-D20

HOLDER, L. PILLION STEP

(19) 40510-KPM-880

CASE, DRIVE CHAIN

(19) 51486-MEL-000

COLLAR, STEP LOWER

(20) 90114-126-900

BOLT, FLANGE, 6MM

(20) 84706-415-000

COLLAR

(21) 90106-MAV-000

SCREW, PAN, 6X12

(22) 90115-MEL-000

SCREW, PAN, 5X15

(23) 90130-MFL-000

BOLT, SOCKET, 8X20

(24) 90157-MFL-D20

BOLT, SOCKET, 8X22

(25) 92501-060500A

BOLT, CAP, 6X50

(26) 94050-05070

NUT, FLANGE, 5MM

(27) 94101-06700

WASHER, PLAIN, 6MM

(28) 94102-08000

WASHER, PLAIN, 8MM

(29) 94201-20120

PIN, SPLIT, 2.0X12

(30) 94201-20150

PIN, SPLIT, 2.0X15

(31) 96211-08000

BALL, STEEL, #8 (1/4)

	Part number	Description	Qty
# 1	18345-MBT-610 18345MBT610 18345MBT610	RUBBER, PROTECTOR MOUNTING	2,56 $
# 1	06405-KPM-P00 06405KPMP00 06405KPMP00	CHAIN SET DRIVE D --- JEU DE CHAINE DE COMMANDE (DAIDO)(DID520V ZB 120L) (LIAISON STD 110L)	Contact	0,00 $
# 1	06405-KPM-P10 06405KPMP10 06405KPMP10	CHAIN SET DRIVE R --- JEU DE CHAINE DE COMMANDE (RK EXCEL) (RK520MOZ9 LJFZ 120L) (LIAISON STD 110L)	Contact	0,00 $
# 2	28333-300-000 28333300000 28333300000	SPRING, KICK STARTER STOPPER	3,64 $
# 3	40514-377-000 40514-333-000 40514377000	PLUG, CHAIN CASE	3,59 $
# 3	40543-KS5-000 40543KS5000 40543KS5000	ADJUSTER, CHAIN	Contact	0,00 $
# 4	40544-KS5-000 40544KS5000 40544KS5000	RETAINER, CHAIN ADJUSTER	Contact	0,00 $
# 4	50600-MFL-D20 50600MFLD20 50600MFLD20	HOLDER, R. MAIN STEP	173,30 $
# 5	40545-KPM-305 40545KPM305 40545KPM305	JOINT, DRIVE CHAIN (DAIDO)	13,55 $
# 5	40545-KPM-306 40545KPM306 40545KPM306	JOINT, DRIVE CHAIN (RK EXCEL)	14,47 $
# 5	50603-MFL-D20 50603MFLD20 50603MFLD20	PIN C, PILLION STEP	3,82 $
# 6	50610-MFL-000 50610MFL000 50610MFL000	GUARD, MAIN STEP HEAT	21,21 $
# 6	52141-KPM-870 52141KPM870 52141KPM870	COLLAR, SWINGARM PIVOT	Contact	0,00 $
# 7	50617-MCJ-750 50617MCJ750 50617MCJ750	SPRING, R. STEP RETURN	6,53 $
# 7	52142-KPM-000 52142KPM000 52142KPM000	COLLAR, THRUST PIVOT	Contact	0,00 $
# 8	50639-MFL-D20 50639MFLD20 50639MFLD20	PIN, STEP BAR	5,53 $
# 8	52170-KPM-000 52170KPM000 52170KPM000	SLIDER, CHAIN	Contact	0,00 $
# 9	50644-MCJ-750 50644MCJ750 50644MCJ750	SPRING, L. STEP RETURN	6,53 $
# 9	52200-KPM-870ZA 52200KPM870ZA 52200KPM870ZA	--- BRAS OSCILLANT SECONDAIRE, AR NH1 (NH1 NOIR) NH1	Contact	0,00 $
# 9	52200-KPM-870ZB 52200KPM870ZB 52200KPM870ZB	--- BRAS OSCILLANT SECONDAIRE, AR R134 (R134 ROUGE COMBAT) R134	Contact	0,00 $
# 10	50660-MEL-000 50660MEL000 50660MEL000	ARM, R. MAIN STEP	74,43 $
# 10	90121-KK0-000 90121KK0000 90121KK0000	BOLT, RR. FORK PIVOT	Contact	0,00 $
# 11	50665-MEL-000 50665MEL000 50665MEL000	ARM, L. MAIN STEP	77,41 $
# 11	90305-GE8-003 90305GE8003 90305GE8003	NUT, U, 14MM	5,97 $
# 12	50700-MFL-D20 50700MFLD20 50700MFLD20	HOLDER, L. MAIN STEP	134,82 $
# 12	90556-MB4-000 90556MB4000 90556MB4000	WASHER	3,07 $
# 13	50707-MFL-000 50707MFL000 50707MFL000	GUARD, L. STEP	53,23 $
# 13	91070-GC4-601 91070GC4601 91070GC4601	BEARING, NEEDLE, 20X26X20 (NTN)	30,19 $
# 14	50718-MEE-D00 50718MEED00 50718MEED00	PLATE, PILLION STEP CLICK	4,71 $
# 14	91251-KFB-003 91251KFB003 91251KFB003	DUST SEAL SWINGAR --- JOINT ANTIPOUSSIERE PIVOT DU BRASOSCILLANT	4,18 $
# 15	50720-MEL-D00 50720MELD00 50720MELD00	ARM, R. PILLION STEP	85,59 $
# 15	93901-25110 9390125110 9390125110	SCREW, TAPPING, 5X10	0,74 $
# 16	50730-MEL-D00 50730MELD00 50730MELD00	ARM, L. PILLION STEP	85,59 $
# 16	94001-080000S 94001080000S 94001080000S	NUT, HEX., 8MM	1,34 $
# 17	50750-MFL-D20 50750MFLD20 50750MFLD20	HOLDER, R. PILLION STEP	152,51 $
# 17	94030-08000 9403008000 9403008000	NUT, HEX., 8MM	1,64 $
# 18	50760-MFL-D20 50760MFLD20 50760MFLD20	HOLDER, L. PILLION STEP	152,51 $
# 19	40510-KPM-880 40510KPM880 40510KPM880	CASE, DRIVE CHAIN	Contact	0,00 $
# 19	51486-MEL-000 51486MEL000 51486MEL000	COLLAR, STEP LOWER	6,69 $
# 20	84706-415-000 84706415000 84706415000	COLLAR	2,91 $
# 20	90114-126-900 90114126900 90114126900	BOLT, FLANGE, 6MM	3,49 $
# 21	90106-MAV-000 90106MAV000 90106MAV000	SCREW, PAN, 6X12	3,01 $
# 22	90115-MEL-000 90115MEL000 90115MEL000	SCREW, PAN, 5X15	2,95 $
# 23	90130-MFL-000 90130MFL000 90130MFL000	BOLT, SOCKET, 8X20	2,83 $
# 24	90157-MFL-D20 90157MFLD20 90157MFLD20	BOLT, SOCKET, 8X22	7,60 $
# 25	92501-060500A 92501060500A 92501060500A	BOLT, CAP, 6X50	2,90 $
# 26	94050-05070 9405005070 9405005070	NUT, FLANGE, 5MM	1,71 $
# 27	94101-06000 94101-06700 9410106000	WASHER, PLAIN, 6MM	0,86 $
# 28	94102-08000 9410208000 9410208000	WASHER, PLAIN, 8MM	1,05 $
# 29	94201-20120 9420120120 9420120120	PIN, SPLIT, 2.0X12	0,88 $
# 30	94201-20150 9420120150 9420120150	PIN, SPLIT, 2.0X15	0,74 $
# 31	96211-08000 9621108000 9621108000	BALL, STEEL, #8 (1/4)	1,68 $
