RADIATOR FOR HONDA CB 250 HORNET SPEED WARNING LIMIT 1999

CAUTION LABEL (1)

FAN COMP., COOLING

19009-KT7-000 19009KT7000

93,22 $

Unit Price

RADIATOR COMP.

19010-KEA-003 19010KEA003

Not available

NUT, SETTING

19014-KEA-003 19014KEA003

4,62 $

Unit Price

SHROUD COMP.

19015-KEA-003 19015KEA003

Not available

SCREW, PAN, 4X8.5

19016-KEA-003 19016KEA003

2,14 $

Unit Price

CLIP, HARNESS (TOYO)

19017-PK1-004 19017PK1004

Not available

--- MOTEUR DE VENTILATEURREFROIDISSEMENT

19030-KCR-003 19030KCR003

Not available

GRILLE, RADIATOR

19032-KV0-700 19032KV0700

Not available

CAP RAD

19037-KA4-701

19045-GBF-700

79,67 $

Unit Price

RUBBER, RADIATOR MOUNTING

19051-KA3-710 19051KA3710

7,22 $

Unit Price

RUBBER, RADIATOR MOUNTING

19051-MS8-000 19051MS8000

5,65 $

Unit Price

COLLAR, RADIATOR MOUNTING

19052-MS8-000 19052MS8000

5,06 $

Unit Price

TANK, RESERVE

19101-KEA-000 19101KEA000

Not available

CASE, THERMOSTAT

19102-KBH-300 19102KBH300

Not available

CAP, THERMOSTAT

19103-MR1-000 19103MR1000

84,85 $

Unit Price

CAP, RESERVE TANK

19104-MB0-700 19104MB0700

16,88 $

Unit Price

NECK, FILLER

19106-MF5-003 19106MF5003

59,46 $

Unit Price

COVER, RADIATOR SIDE

19150-MY9-000 19150MY9000

Not available

THERMOSTAT ASSY.

19300-KE8-000 19300KE8000

91,30 $

Unit Price

HOSE, RADIATOR UPPER

19501-KEA-000 19501KEA000

Not available

HOSE, R. WATER (NO.8)

19502-KEA-000 19502KEA000

Not available

HOSE, L. WATER

19503-KEA-000 19503KEA000

Not available

HOSE, RADIATOR LOWER

19504-KEA-000 19504KEA000

Not available

CLAMP, WATER HOSE, 25MM

19504-KY1-003 19504KY1003

13,20 $

Unit Price

CLAMP, HOSE, 24-32MM

19516-ML7-691 19516ML7691

13,78 $

Unit Price

CONNECTOR, EARTH

32152-MB3-000 32152MB3000

Not available

THERMO UNIT (DENSO)

37750-PC1-004 37750PC1004

78,15 $

Unit Price

SWITCH ASSY., THERMO

37760-MT2-003 37760MT2003

114,23 $

Unit Price

CLIP, BRAKE PIPE

46397-SM4-A52 46397SM4A52

Not available

STAY, FUSE BOX

80105-MW3-600 80105MW3600

14,33 $

Unit Price

BOLT, FLANGE, 6MM

90111-162-000 90111162000

3,78 $

Unit Price

SCREW, PAN, 6X14

90118-MR1-000 90118MR1000

5,45 $

Unit Price

NUT, TOOTHED, 3MM

90308-KM3-003 90308KM3003

3,88 $

Unit Price

CLAMP, CANISTER HOSE

90682-SB0-671 90682SB0671

Not available

O-RING, 18.9X1.5

91302-MF5-000 91302MF5000

4,60 $

Unit Price

O-RING, 13.5X1.4

91307-611-000

Not available

O-RING 47 5X2

91311-KE8-000

91311-MCE-900

3,52 $

Unit Price

BOLT-WASHER, 6X16

93401-0601608 934010601608

0,84 $

Unit Price

CLIP, TUBE (C12)

95002-80000 9500280000

1,87 $

Unit Price

TUBE, 5X760 (95005-50001-30M)

95005-5076030 950055076030

Not available

TUBE, 7.3X900 (95005-75001-20M)

95005-7590020 950057590020

Not available

BOLT, FLANGE, 6X14

95701-0601407 957010601407

1,56 $

Unit Price

BOLT, FLANGE, 6X25

95701-0602507 957010602507

2,24 $

Unit Price

BOLT, FLANGE, 6X12

96001-0601207 960010601207

1,60 $

Unit Price

BOLT, FLANGE, 6X20

96001-0602000 960010602000

1,65 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

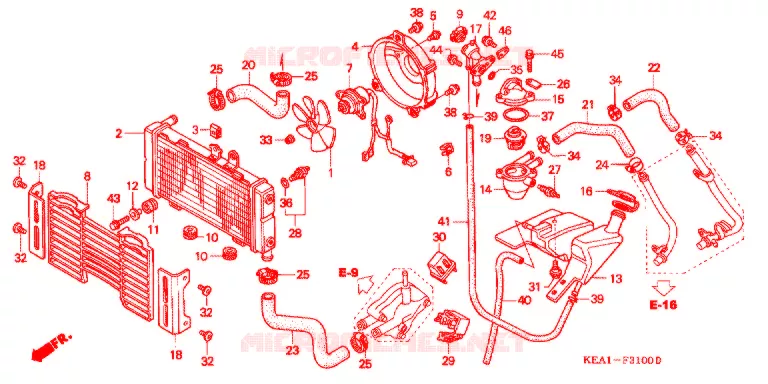

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the RADIATOR of your Honda CB 250 HORNET SPEED WARNING LIMIT of HORNET. Let us know if you have any questions.
