RIGHT CRANKCASE COVER

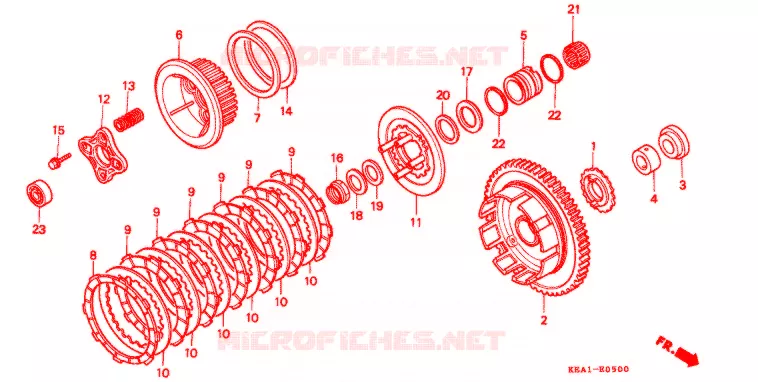

CLUTCH FOR HONDA CB 250 HORNET 2000

STARTER MOTOR CLUTCH

SPROCKET, OIL PUMP DRIVE (27T)

15131-KT7-013 15131KT7013

Not available

--- VOLANT COMP. EMBRAYAGE (89T)

22100-KBH-000 22100KBH000

Not available

COLLAR, OIL PUMP SPROCKET

22116-KT7-000 22116KT7000

Not available

GUIDE, CLUTCH OUTER

22117-KT7-000 22117KT7000

Not available

COLLAR, CLUTCH OUTER

22118-KT7-010 22118KT7010

Not available

CENTER, CLUTCH (34T)

22120-KCR-000 22120KCR000

Not available

SEAT, JUDDER SPRING

22125-KT7-750 22125KT7750

17,95 $

Unit Price

DISK, CLUTCH FRICTION

22201-KAZ-000 22201KAZ000

34,62 $

Unit Price

DISK, CLUTCH FRICTION

22201-MR8-000 22201MR8000

22,62 $

Unit Price

PLATE, CLUTCH

22321-KE7-000 22321KE7000

19,37 $

Unit Price

PLATE, CLUTCH PRESSURE

22350-KV0-000 22350KV0000

Not available

PLATE, CLUTCH LIFTER

22361-KT7-000 22361KT7000

Not available

SPRING, CLUTCH

22401-KM9-000 22401KM9000

Not available

SPRING, JUDDER

22402-KT7-750 22402KT7750

25,46 $

Unit Price

BOLT, SPECIAL FLANGE, 6X22

90050-357-000 90050357000

4,78 $

Unit Price

NUT, LOCK, 20MM

90241-KM9-000 90241KM9000

18,56 $

Unit Price

WASHER, THRUST, 30MM

90402-KT7-000 90402KT7000

Not available

WASHER, LOCK

90432-121-000 90432121000

7,11 $

Unit Price

WASHER, THRUST, 20X31.5

90443-430-000 90443430000

Not available

WASHER, THRUST, 22MM

90451-KCR-000 90451KCR000

4,48 $

Unit Price

BEARING, NEEDLE, 30X37X20

91025-KT7-003 91025KT7003

32,99 $

Unit Price

O-RING, 37X2.4 (ARAI)

91305-KT7-003 91305KT7003

4,35 $

Unit Price

BEARING, RADIAL BALL, 6001

96100-6001000 961006001000

10,14 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CLUTCH of your Honda CB 250 HORNET of HORNET. Let us know if you have any questions.
