CARBURETOR (ASSY.)

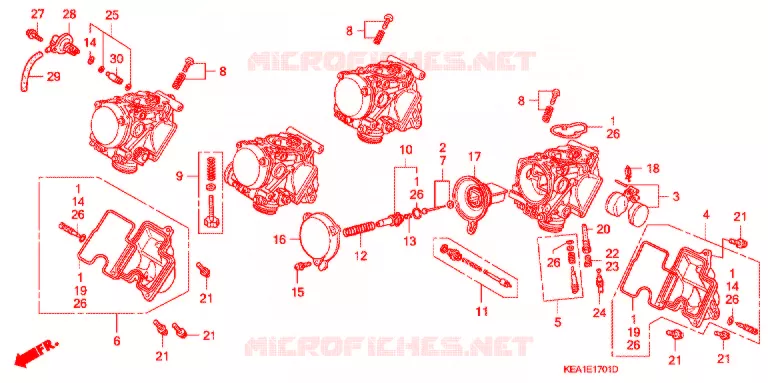

CARBURETOR (COMPONENT PARTS) FOR HONDA CB 250 HORNET 2002

GASKET KIT

NEEDLE SET, JET

16012-KEA-741 16012KEA741

Not available

FLOAT SET

16013-MCE-003 16013MCE003

Not available

--- JEU CUVE FLOTTEUR (CARB. NUM. 1&2&3)

16015-KEA-000 16015KEA000

Not available

SCREW SET

16016-MBW-731 16016MBW731

32,68 $

Unit Price

--- JEU CUVE FLOTTEUR (CARB. NUMERO 4)

16023-KEA-000 16023KEA000

Not available

SCREW SET

16028-MZ2-E00 16028MZ2E00

Not available

SCREW SET

16029-KEA-000 16029KEA000

Not available

PLATE SET, VALVE

16037-MY9-690 16037MY9690

Not available

VALVE SET, STARTER

16046-KAZ-780 16046KAZ780

68,14 $

Unit Price

SPRING, VACUUM PISTON

16050-KEA-741 16050KEA741

Not available

SPRING, COMPRESSION COIL

16051-MV4-000 16051MV4000

Not available

O-RING, 1.3X4.3

16075-GHB-640 16075GHB640

4,55 $

Unit Price

SCREW-WASHER

16080-MV4-000 16080MV4000

2,14 $

Unit Price

TOP

16107-KAZ-000 16107KAZ000

Not available

PISTON COMP., VACUUM

16111-KEA-741 16111KEA741

Not available

VALVE COMP., FLOAT

16155-413-751 16155413751

54,71 $

Unit Price

GASKET, FLOAT CHAMBER

16163-KEA-000 16163KEA000

24,71 $

Unit Price

HOLDER, NEEDLE JET

16165-KEA-000 16165KEA000

Not available

SCREW-WASH 5X16

93892-0501610

93892-050160A

1,46 $

Unit Price

JET PRIMARI MAIN

99101-GHB0880

Not available

JET, MAIN, #90

99101-GHB0900 99101GHB0900

13,03 $

Unit Price

JET, #38

99103-KBA0380 99103KBA0380

13,03 $

Unit Price

GASKET SET C

16010-HM7-670

Not available

GASKET SET

16010-MZ0-000 16010MZ0000

34,17 $

Unit Price

SCREW

16108-MW0-750 16108MW0750

3,70 $

Unit Price

VALVE ASSY., AIR CUT

16510-MBT-621 16510MBT621

198,05 $

Unit Price

TUBE, 3.5X60 (95005-35001-20M)

95005-3506020 950053506020

Not available

JET, #105

99108-KEA1050 99108KEA1050

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR (COMPONENT PARTS) of your Honda CB 250 HORNET of HORNET. Let us know if you have any questions.
