SIDE STAND

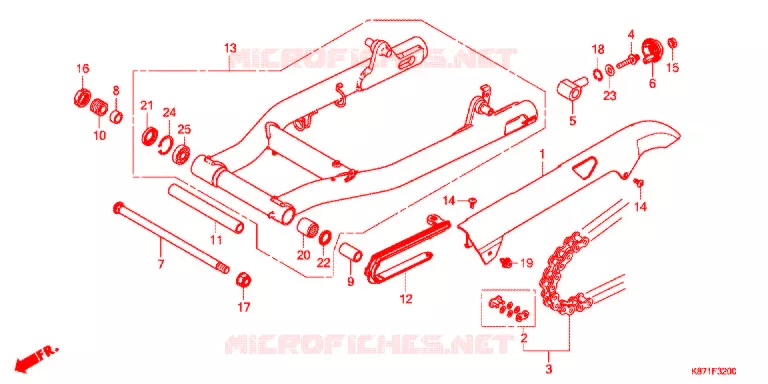

SWINGARM - CHAIN CASE FOR HONDA REBEL 250 2017

REAR SHOCK ABSORBER (2)

CASE DRIVE CHAIN

40510-K87-A00

40510-K87-A01

41,70 $

Unit Price

JOINT DRIVE CHAIN --- JOINT DE CHAINE DE COMMANDE (RK)

40531-K87-A01 40531K87A01

25,90 $

Unit Price

JOINT, DRIVE CHAIN(DAIDO)

40545-KYJ-902 40545KYJ902

24,59 $

Unit Price

CHAIN DRIVE RK520 --- CHAINE DE COMMANDE (RK) (RK520KLO2-120LJFZ) (LIAISON STD 110L)

40540-K87-A02 40540K87A02

153,11 $

Unit Price

CHAIN, DRIVE(DID520VF-120ZB)

40540-KYJ-902 40540KYJ902

191,61 $

Unit Price

BOLT, CHAIN ADJUSTING

40542-K87-A00 40542K87A00

3,39 $

Unit Price

ADJUSTER COMP., CHAIN

40543-K87-A00 40543K87A00

20,30 $

Unit Price

CAP, SWINGARM END

40546-K87-A00 40546K87A00

17,19 $

Unit Price

BOLT, SWINGARM PIVOT

52101-K87-A00 52101K87A00

17,64 $

Unit Price

COLLAR B, SWINGARM PIVOT

52105-K87-A00 52105K87A00

4,04 $

Unit Price

COLLAR, PIVOT

52106-KYJ-900 52106KYJ900

9,11 $

Unit Price

BOLT, PIVOT ADJUSTING

52109-K87-A00 52109K87A00

12,88 $

Unit Price

COLLAR, PIVOT DISTANCE

52141-K87-A00 52141K87A00

9,08 $

Unit Price

SLIDER, CHAIN

52170-K87-A00 52170K87A00

7,79 $

Unit Price

SWINGARM SUB ASSY., RR.

52200-K87-A00 52200K87A00

986,19 $

Unit Price

SCREW, SPECIAL, 6X14

90115-MGZ-J00 90115MGZJ00

1,63 $

Unit Price

NUT, U, 10MM

90301-K87-A01 90301K87A01

3,39 $

Unit Price

NUT, LOCK, 26X1.5

90302-K87-A00 90302K87A00

14,69 $

Unit Price

NUT, U, 14MM

90305-KCJ-951 90305KCJ951

6,49 $

Unit Price

CIRCLIP IN 20 --- CIRCLIP INTERIEUR (20)

90651-K87-A00 90651K87A00

2,43 $

Unit Price

CLIP, BODY

90683-MBW-003 90683MBW003

3,82 $

Unit Price

NEEDLE BRG

91071-MJ0-003

91072-KYJ-711

43,82 $

Unit Price

DUST SEAL 22X35X7

91213-MB2-006

91213-MB2-003

12,99 $

Unit Price

DUST SEAL, 22X29X4 (ARAI)

91283-ML7-003 91283ML7003

10,53 $

Unit Price

WASHER, PLAIN, 10MM

94101-10700 9410110700

1,59 $

Unit Price

CIRCLIP, INTERNAL, 35MM

94520-35000 9452035000

2,18 $

Unit Price

BEARING, RADIAL BALL, 6202

96100-6202010 961006202010

9,60 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM - CHAIN CASE of your Honda REBEL 250 of REBEL. Let us know if you have any questions.
