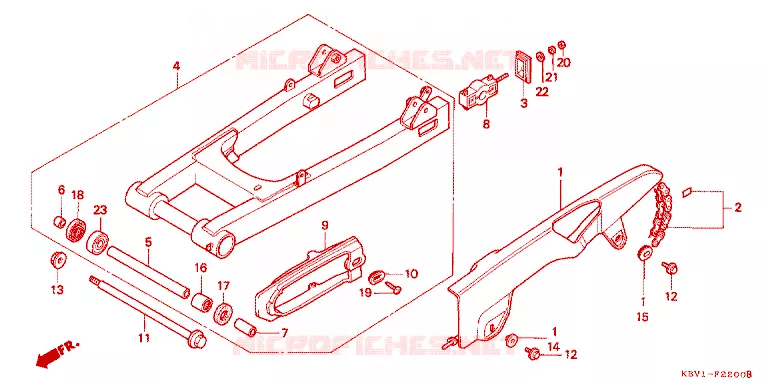

SWINGARM - CHAIN CASE FOR HONDA VT 250 F XELVIS 1992

REAR SHOCK ABSORBER

Item numbers

CASE, DRIVE CHAIN

40510-KBV-000 40510KBV000

Not available

CASE, DRIVE CHAIN

40510-KBV-000 40510KBV000

Not available

CASE, DRIVE CHAIN

40510-KBV-000 40510KBV000

Not available

CHAIN SET, DRIVE (102L-120L RK EXCEL) (TAKASAGO) (RK520SMO)

40530-KBV-405 40530KBV405

Not available

CHAIN SET, DRIVE (102L-120L RK EXCEL) (DID)

40550-KBV-406 40550KBV406

Not available

CAP, SWINGARM END

40546-KBV-000 40546KBV000

Not available

--- ENS. BRAS OSCILLANT *NH167MU * (NH167MU ARGENT-U FER METALLIQUE) *52100KBV000*

52100-KBV-000ZA 52100KBV000ZA

Not available

COLLAR, PIVOT DISTANCE

52102-MV9-000 52102MV9000

Not available

COLLAR B, RR. FORK PIVOT

52105-MJ0-000 52105MJ0000

2,42 $

Unit Price

COLLAR B, PIVOT

52106-ML4-000 52106ML4000

Not available

COLLAR COMP., CHAIN TENSIONER

52120-KG4-000 52120KG4000

62,00 $

Unit Price

SLIDER, CHAIN

52170-KBV-000 52170KBV000

Not available

WASHER, CHAIN SLIDER

52171-KR6-000 52171KR6000

3,04 $

Unit Price

BOLT, RR. FORK PIVOT

90121-MS8-000 90121MS8000

Not available

BOLT, FLANGE, 6X12

90154-ML0-000 90154ML0000

3,23 $

Unit Price

BOLT, FLANGE, 6X12

90154-ML0-000 90154ML0000

3,23 $

Unit Price

NUT, U, 14MM

90305-GE8-003 90305GE8003

6,79 $

Unit Price

WASHER 6X20

90512-422-000

90512-KF9-900

5,14 $

Unit Price

WASHER 6X9

90513-428-900

90513-405-000

2,93 $

Unit Price

NEEDLE BRG

91071-MJ0-003

91072-KYJ-711

43,82 $

Unit Price

BEARING, NEEDLE (TOMUSON) (THOMPSON)

91071-MJ0-004 91071MJ0004

43,82 $

Unit Price

OIL SEAL, 22X31X5 (ARAI)

91205-965-003 91205965003

10,08 $

Unit Price

DUST SEAL, 22X35X7 (ARAI)

91213-MB2-003 91213MB2003

12,99 $

Unit Price

DUST SEAL 22X35X7

91213-MB2-006

91213-MB2-003

12,99 $

Unit Price

SCREW TAP 5X10

93901-25220

93901-25120

1,31 $

Unit Price

NUT, HEX., 8MM

94001-080000S 94001080000S

1,53 $

Unit Price

NUT, HEX., 8MM

94030-08000 9403008000

1,87 $

Unit Price

WASHER, PLAIN, 8MM

94102-08000 9410208000

1,21 $

Unit Price

BEARING, RADIAL BALL, 6202

96100-6202010 961006202010

9,60 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM - CHAIN CASE of your Honda VT 250 F XELVIS of VT. Let us know if you have any questions.
