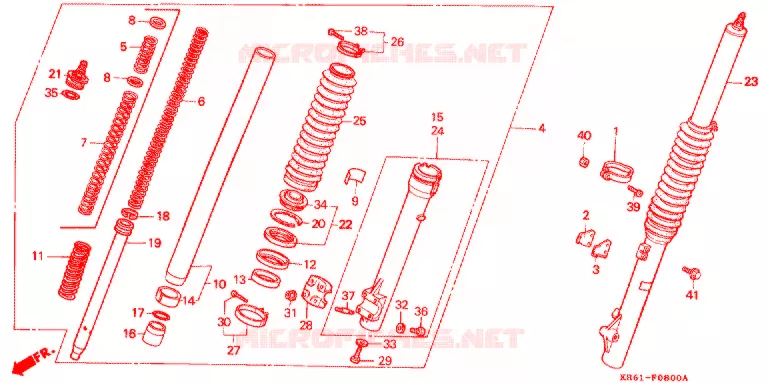

FRONT FORK (1) (RF / R2F / RH / R3J / RK / RL / R3L) FOR HONDA XLR 250 R 1987

FRONT BRAKE CALIPER (1) (RF / R2F / RH)

CLAMPER, SPEEDOMETER CABLE

44832-MG2-700 44832MG2700

8,63 $

Unit Price

CLAMPER B, FR. BRAKE CABLE

45462-MG3-650 45462MG3650

10,37 $

Unit Price

CLAMPER A, FR. BRAKE CABLE

45461-MG3-650 45461MG3650

Not available

--- ENS. FOURCHE AV. D. (WL) *PB5L * (PB5L BLEU FIJI) *PB5L *

51400-KV6-013ZA 51400KV6013ZA

Not available

SPRING, FR. CUSHION (SHOWA) (2.45N/MM, 0.25KGF/MM 1 GROOVE)

51401-KV6-003 51401KV6003

Not available

PIPE COMP., FR. FORK (SHOWA)

51410-KV6-003 51410KV6003

Not available

SPRING, FR. REBOUND

51416-KF0-003 51416KF0003

Not available

RING, BACK UP

51412-KF0-003 51412KF0003

Not available

BUSH GUIDE

51414-MB4-003

51414-MN5-003

23,57 $

Unit Price

BUSH, SLIDER

51415-MG2-701 51415MG2701

26,85 $

Unit Price

CASE COMP., R. BOTTOM

51420-MG2-701 51420MG2701

Not available

PIECE, OIL LOCK

51432-KF0-003 51432KF0003

Not available

RING, PISTON

51437-KF0-003 51437KF0003

Not available

PIPE COMP., SEAT

51440-KV6-003 51440KV6003

Not available

RING, OIL SEAL STOPPER

51447-KA4-711 51447KA4711

6,66 $

Unit Price

BOLT ASSY., FR. FORK

51450-KF0-003 51450KF0003

Not available

SEAL SET, FR. FORK

51490-KF0-772 51490KF0772

Not available

--- ENS. FOURCHE AV. G. (WL) *PB5L * (PB5L BLEU FIJI) *PB5L *

51500-KV6-013ZA 51500KV6013ZA

Not available

CASE COMP., L. BOTTOM

51520-MG2-701 51520MG2701

Not available

BOOT FR FOR*PB5L* --- SOUFFLET, FOURCHE AV. *PB5L * (PB5L BLEU FIJI) *PB5L *

51611-MG2-702ZB 51611MG2702ZB

Not available

BAND, FR. FORK BOOT

51612-KF0-003 51612KF0003

11,31 $

Unit Price

HOLDER, AXLE

51634-MA0-003 51634MA0003

50,50 $

Unit Price

BOLT, SOCKET, 8X27

90116-383-721 90116383721

8,89 $

Unit Price

NUT, U, 6MM

90301-473-003 90301473003

5,13 $

Unit Price

PACKING, FR. FORK DRAIN COCK

90543-273-000 90543273000

3,54 $

Unit Price

WASHER, SPECIAL, 8MM

90544-283-000 90544283000

3,52 $

Unit Price

DUST SEAL, FR. FORK

91254-KF0-003 91254KF0003

Not available

O-RING, 33.2X2.4

91356-KF0-003 91356KF0003

6,49 $

Unit Price

BOLT, HEX., 6X8

92101-060080A 92101060080A

1,46 $

Unit Price

BOLT, STUD, 6X25

92900-060250E 92900060250E

1,60 $

Unit Price

SCREW, PAN, 3X20

93500-030200A 93500030200A

0,87 $

Unit Price

SCREW, PAN, 5X20

93500-050200A 93500050200A

0,84 $

Unit Price

NUT, HEX., 5MM

94001-050000S 94001050000S

0,84 $

Unit Price

BOLT FLANGE 6X16

96500-0601600

96400-0601600

1,66 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK (1) (RF/R2F/RH/R3J/RK/RL/R3L) of your Honda XLR 250 R of XL. Let us know if you have any questions.
