KICK STARTER ARM - BRAKE PEDAL - GEAR LEVER

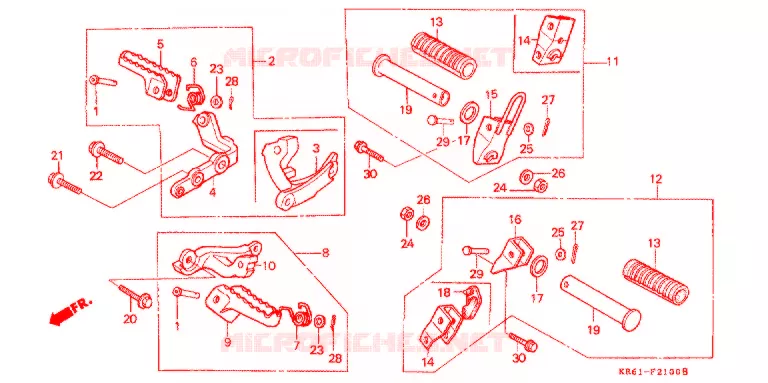

FOOTREST (1) (RF / R2F / RH / R3J / RK / RL / R3L) FOR HONDA XLR 250 R 1989

REAR ARM - CHAIN CASE (3)

PIN, STEP BAR JOINT

50603-KV6-000 50603KV6000

Not available

ARM ASSY., R. STEP

50610-KV6-010 50610KV6010

Not available

ARM, R. STEP

50615-KT1-671 50615KT1671

Not available

STEP COMP., R.

50616-KT1-670 50616KT1670

Not available

SPRING, R. STEP RETURN

50617-KT1-670 50617KT1670

Not available

SPRING, L. STEP RETURN

50618-KT1-670 50618KT1670

Not available

STEP COMP., L.

50626-KT1-670 50626KT1670

Not available

STEP ASSY., R. PILLION

50700-KV6-000 50700KV6000

Not available

STEP ASSY., L. PILLION

50705-KV6-000 50705KV6000

Not available

RUBBER PILLION ST --- CAOUTCHOUC DE MARCHE-PIED SELLEAR.

50710-MK5-000 50710MK5000

9,84 $

Unit Price

BRACKET, R. PILLION STEP

50711-KV6-000 50711KV6000

Not available

BRACKET, L. PILLION STEP

50712-KV6-000 50712KV6000

Not available

WASHER, PILLION STEP

50712-405-000 50712405000

4,21 $

Unit Price

BAR, PILLION STEP

50715-KB7-000 50715KB7000

38,08 $

Unit Price

BOLT, FLANGE, 10X40

90211-KT1-670 90211KT1670

Not available

BOLT, FLANGE, 12X40

90212-KT1-670 90212KT1670

Not available

WASHER, 10.2MM

90401-430-000 90401430000

3,09 $

Unit Price

WASHER 6MM

94101-06000

94101-060-000

0,98 $

Unit Price

PIN, SPLIT, 1.6X15

94201-16150 9420116150

0,84 $

Unit Price

PIN, SPLIT, 2.0X15

94201-20150 9420120150

0,84 $

Unit Price

PIN A, PILLION STEP

95015-81000 9501581000

3,26 $

Unit Price

BOLT, FLANGE, 10X25

96400-1002500 964001002500

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FOOTREST (1) (RF/R2F/RH/R3J/RK/RL/R3L) of your Honda XLR 250 R of XL. Let us know if you have any questions.
