EXHAUST MUFFLER

PEDAL - FOOT REST FOR HONDA FOURTRAX 420 RANCHER 4X4 2016

SWING ARM

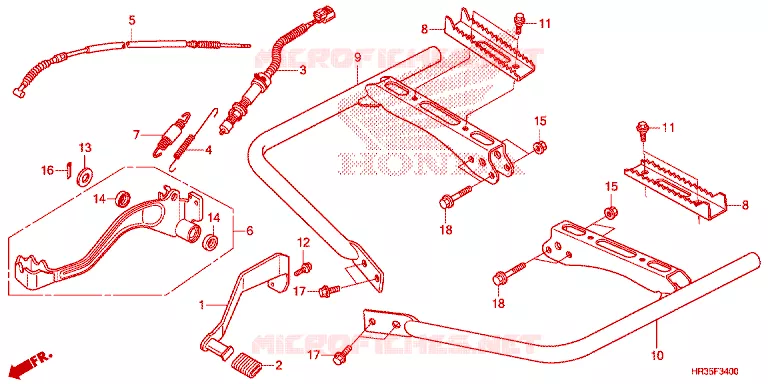

PEDAL - FOOT REST Honda ATV 420 FOURTRAX 2016 TRX420FM1F
1
PEDAL, GEAR CHANGE

24700-HR3-L20   24700HR3L20

24700HR3L20
Not available
2
RUBBER, CHANGE PEDAL

24781-371-000   24781371000

24781371000

Unit Price

3
SW ASSY REAR STOP --- ENS INTERRUPTEUR MARCHE ARRIERE

35350-HR3-A21   35350HR3A21

35350HR3A21

Unit Price

4
SPRING, STOP SWITCH

35357-HP5-600   35357HP5600

35357HP5600

Unit Price

5
CABLE COMP., FOOT BRAKE

43470-HR3-A21   43470HR3A21

43470HR3A21

Unit Price

6
PEDAL ASSY., BRAKE

46510-HR3-A20   46510HR3A20

46510HR3A20

Unit Price

7
SPRING ASSY., RR. BRAKE PEDAL

46513-HR3-A20   46513HR3A20

46513HR3A20

Unit Price

8
STEP

50610-HR3-L20   50610HR3L20

50610HR3L20
Not available
9
BRACKET COMP., R. STEP *NH196*

50611-HR3-A20   50611HR3A20

50611HR3A20

Unit Price

10
BRACKET COMP., L. STEP *NH196*

50612-HR3-A20   50612HR3A20

50612HR3A20

Unit Price

11
BOLT, FLANGE, 6MM
BOLT, FLANGE, 6MM

90111-HP0-A00   90111HP0A00

90111HP0A00

Unit Price

12
BOLT, FLANGE, 6X20

90118-968-000   90118968000

90118968000

Unit Price

13
WASHER, 17.5MM

90512-303-000   90512303000

90512303000

Unit Price

14
SEAL DUST 17X23X3

91206-968-004  

91206-HA0-681
 91206968004

Unit Price

15
NUT, FLANGE, 8MM
NUT, FLANGE, 8MM

94050-08000   9405008000

9405008000
Not available
16
PIN C0TTER 30X45

94201-30250  

94201-30300
 9420130250

Unit Price

17
BOLT FLANGE 8X16

95801-0801600  

93483-08016
 958010801600

Unit Price

18
BOLT, FLANGE, 8X45

95801-0804500   958010804500

958010804500

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Honda, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Honda 2016 FOURTRAX 420 RANCHER 4X4
