FRONT COWL - FRONT FENDER

FRONT FORK FOR HONDA 50 DIO SR FRONT BRAKE DISK, SPECIAL 1990

FRONT BRAKE CALIPER

Item numbers

RACE, STEERING UPPER BALL

50301-GM0-000 50301GM0000

16,88 $

Unit Price

RACE STRG BALL

50305-GE8-680

Not available

NUT STRG STEM LOC

50306-196-000

Not available

--- ENS. FOURCHE AV. D. *NH1 * (NH1 NOIR) *51400GW0751*

51400-GW0-751ZA 51400GW0751ZA

Not available

--- ENS. FOURCHE AV. D. *YR162M * (YR162M OR MISTRAL METALLIQUE) *51400GW0751*

51400-GW0-751ZB 51400GW0751ZB

Not available

SPRING, FR. CUSHION

51401-GW0-751 51401GW0751

Not available

RUBBER, STOPPER

51406-GW0-751 51406GW0751

Not available

PIPE COMP., FR. FORK

51410-GW0-751 51410GW0751

Not available

SPRING, REBOUND

51412-GW0-751 51412GW0751

Not available

--- BOITIER COMP. INFERIEUR D. *NH1 * (NH1 NOIR) *51421GW0751*

51421-GW0-751ZA 51421GW0751ZA

Not available

--- BOITIER COMP. INFERIEUR D. *YR162M * (YR162M OR MISTRAL METALLIQUE) *51421GW0751*

51421-GW0-751ZB 51421GW0751ZB

Not available

DUST SEAL

51425-GW0-701 51425GW0701

16,13 $

Unit Price

GUIDE, PIPE

51443-GW0-731 51443GW0731

Not available

CAP, FR. FORK

51449-GW0-003 51449GW0003

11,07 $

Unit Price

--- ENS. FOURCHE AV. G. *NH1 * (NH1 NOIR) *51500GW0751*

51500-GW0-751ZA 51500GW0751ZA

Not available

--- ENS. FOURCHE AV. G. *YR162M * (YR162M OR MISTRAL METALLIQUE) *51500GW0751*

51500-GW0-751ZB 51500GW0751ZB

Not available

--- BOITIER COMP. INFERIEUR G. *NH1 * (NH1 NOIR) *51521GW0751*

51521-GW0-751ZA 51521GW0751ZA

Not available

--- BOITIER COMP. INFERIEUR G. *YR162M * (YR162M OR MISTRAL METALLIQUE) *51521GW0751*

51521-GW0-751ZB 51521GW0751ZB

Not available

BALL ASSY., STEERING STEEL

53210-GR1-751 53210GR1751

28,19 $

Unit Price

BALL ASSY., STEERING STEEL

53210-GR1-751 53210GR1751

28,19 $

Unit Price

STEM SET, STEERING

53210-GW0-307 53210GW0307

Not available

RACE, STEERING TOP CONE

53211-GC8-003 53211GC8003

20,36 $

Unit Price

RACE, STEERING BOTTOM CONE (MITSUBOSHI)

53212-147-003 53212147003

Not available

CIRCLIP, INTERNAL

90661-GW0-003 90661GW0003

6,23 $

Unit Price

BOLT, FLANGE, 8X40

95801-0804000 958010804000

2,62 $

Unit Price

BOLT, FLANGE, 8X40

95801-0804000 958010804000

2,62 $

Unit Price

PISTON, SLIDE PIPE

51423-GW0-731 51423GW0731

13,05 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

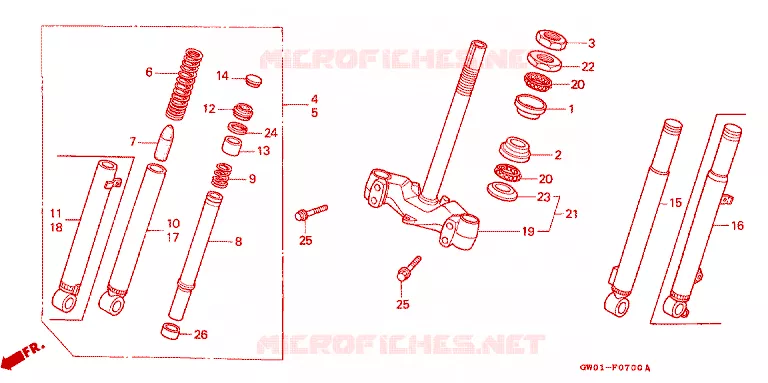

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Honda 50 DIO SR front brake disk, SPECIAL of DIO. Let us know if you have any questions.
