CLUTCH FOR HONDA 50 DIO SR FRONT BRAKE DRUM, SPECIAL EDITION 1990

GEARBOX

OUTER CLUTCH

22100-GR1-750

22100-GW2-710

129,70 $

Unit Price

PLATE COMP., DRIVE

22350-GW0-731 22350GW0731

Not available

SPRING, CLUTCH

22401-GW0-730 22401GW0730

Not available

RUBBER, CLUTCH DAMPER

22804-148-000 22804148000

4,06 $

Unit Price

BELT DRIVE

23100-GG2-750

23100-GG2-751

79,40 $

Unit Price

FACE SET DRIVEN

23205-GR1-315

Not available

FACE COMP MOVABLE

23220-GR1-000

Not available

PIN, GUIDE

23225-GN2-010 23225GN2010

Not available

SPRING, DRIVEN FACE

23233-GM0-000 23233GM0000

35,13 $

Unit Price

COLLAR, SEAL

23237-GN2-000 23237GN2000

Not available

COLLAR, SPRING

23238-GS7-010 23238GS7010

17,25 $

Unit Price

NUT, SPECIAL, 28MM

90202-187-000 90202187000

Not available

NUT, FLANGE, 10MM

94050-10000 9405010000

Not available

NUT FLANG SP 10MM

90308-GW0-000

Not available

WASHER, THRUST, 6MM

90442-044-000 90442044000

3,78 $

Unit Price

CIR CLIP 6MM

90603-044-000

90454-GB2-000

1,75 $

Unit Price

BEARING, RADIAL BALL, 6901U (NTN)

91001-GA7-701 91001GA7701

Not available

BEARING, NEEDLE, 17X25X18 (NTN)

91103-GR1-003 91103GR1003

Not available

OIL SEAL, 34X39X3 (ARAI)

91211-GK8-013 91211GK8013

Not available

O-RING, 38.5X2

91351-GR1-000 91351GR1000

5,23 $

Unit Price

O-RING, PINION CAP

91351-642-000 91351642000

7,10 $

Unit Price

CIRCLIP, INTERNAL, 24MM

94520-24000 9452024000

1,87 $

Unit Price

PLATE ASSY., DRIVE

22300-GW0-306 22300GW0306

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

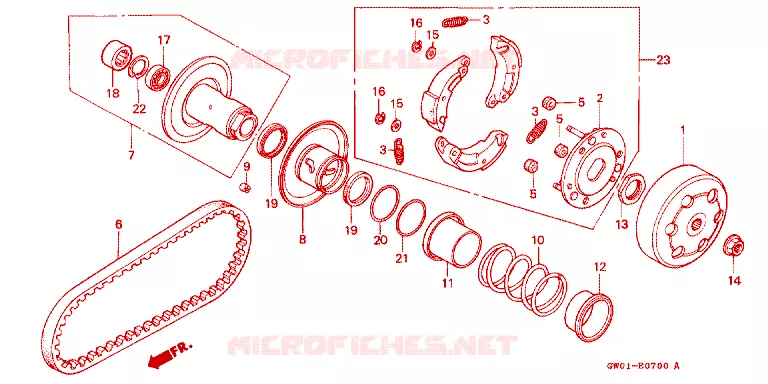

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CLUTCH of your Honda 50 DIO SR front brake drum, SPECIAL EDITION of DIO. Let us know if you have any questions.

Please choose your model in the list above and click on its Genuine Spare Parts Catalogue

50 DIO SR front brake drum, SPECIAL EDITION

Honda DIO

Displacement: 50 cc
Year: 1990
Model code SK50ML_SP
Color: NH237P

Japan

Add to my garage

CLUTCH FOR HONDA 50 DIO SR FRONT BRAKE DRUM, SPECIAL EDITION 1990
