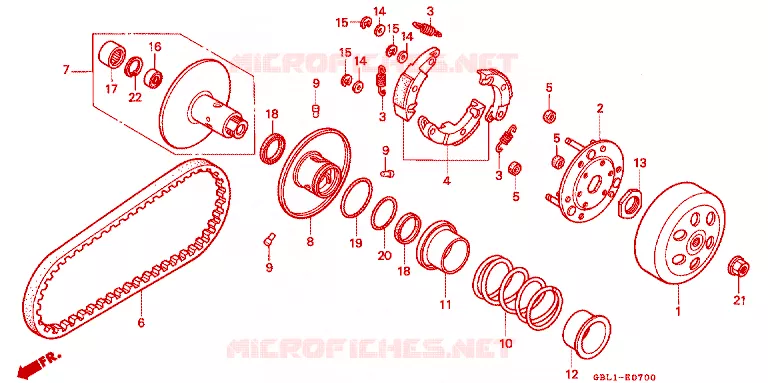

CLUTCH FOR HONDA 50 LIVE DIO 2000

GEARBOX

Item numbers

OUTER COMP., CLUTCH

22100-GW2-710 22100GW2710

129,70 $

Unit Price

PLATE COMP., DRIVE

22350-GAH-A00 22350GAHA00

Not available

SPRING, CLUTCH

22401-GW2-710 22401GW2710

Not available

SPRING, CLUTCH

22401-GW2-710 22401GW2710

Not available

SPRING, CLUTCH

22401-GW2-710 22401GW2710

Not available

WEIGHT SET, CLUTCH

22535-GAK-305 22535GAK305

94,08 $

Unit Price

RUBBER, CLUTCH DAMPER

22804-148-000 22804148000

4,06 $

Unit Price

RUBBER, CLUTCH DAMPER

22804-148-000 22804148000

4,06 $

Unit Price

RUBBER, CLUTCH DAMPER

22804-148-000 22804148000

4,06 $

Unit Price

BELT, DRIVE (BANDO)

23100-GAG-751 23100GAG751

Not available

FACE SET, DRIVEN

23205-GBL-306 23205GBL306

Not available

FACE COMP., MOVABLE DRIVEN

23220-GBL-880 23220GBL880

Not available

PIN, GUIDE

23225-GR1-750 23225GR1750

3,47 $

Unit Price

PIN, GUIDE

23225-GR1-750 23225GR1750

3,47 $

Unit Price

PIN, GUIDE

23225-GR1-750 23225GR1750

3,47 $

Unit Price

SPRING, DRIVEN FACE

23233-GM0-000 23233GM0000

35,13 $

Unit Price

COLLAR, SEAL

23237-GR1-880 23237GR1880

11,70 $

Unit Price

COLLAR, SPRING

23238-GS7-010 23238GS7010

17,25 $

Unit Price

NUT, SPECIAL, 28MM

90202-187-000 90202187000

Not available

WASHER, THRUST, 6MM

90442-044-000 90442044000

3,78 $

Unit Price

WASHER, THRUST, 6MM

90442-044-000 90442044000

3,78 $

Unit Price

WASHER, THRUST, 6MM

90442-044-000 90442044000

3,78 $

Unit Price

CIRCLIP, 6MM

90454-GB2-000 90454GB2000

1,75 $

Unit Price

CIRCLIP, 6MM

90454-GB2-000 90454GB2000

1,75 $

Unit Price

CIRCLIP, 6MM

90454-GB2-000 90454GB2000

1,75 $

Unit Price

BEARING, RADIAL BALL, 6901U (NTN)

91001-GA7-701 91001GA7701

Not available

BEARING, NEEDLE, 17X25X18 (NTN)

91103-GR1-003 91103GR1003

Not available

OIL SEAL, 34X39X3 (ARAI)

91211-GK8-013 91211GK8013

Not available

OIL SEAL, 34X39X3 (ARAI)

91211-GK8-013 91211GK8013

Not available

O-RING, 39.8X2.2 (ARAI)

91302-PA9-003 91302PA9003

Not available

O-RING, 36X1.5 (ARAI)

91301-KA5-741 91301KA5741

Not available

NUT, FLANGE, 10MM

94050-10000 9405010000

Not available

CIRCLIP, INTERNAL, 24MM

94520-24000 9452024000

1,87 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CLUTCH of your Honda 50 LIVE DIO of DIO. Let us know if you have any questions.
