Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

HANDLEBAR

STEERING SHAFT(POWER STEE RING) FOR HONDA FOURTRAX 500 FOREMAN 4X4 POWER STEERING 2011

TIE ROD

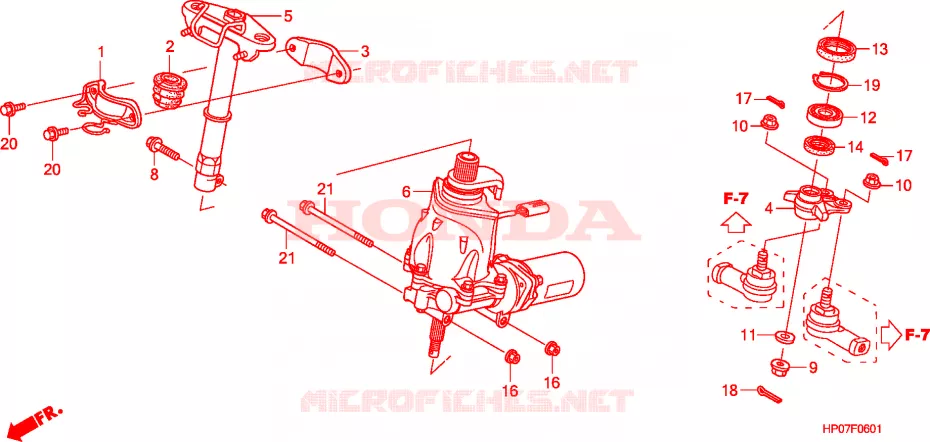

STEERING SHAFT(POWER STEE RING) Honda ATV 500 FOURTRAX 2011 TRX500FPMB
1
HOLDER COMP., STEERING SHAFT

53220-HP0-A00   53220HP0A00

53220HP0A00

Unit Price

2
BUSH, STEERING

53221-HP0-B01   53221HP0B01

53221HP0B01

Unit Price

3
HOLDER, STEERING SHAFT

53223-HP0-A00   53223HP0A00

53223HP0A00

Unit Price

4
ARM, STEERING

53235-HP0-B00   53235HP0B00

53235HP0B00

Unit Price

5
SHAFT COMP., STEERING

53310-HP0-B00   53310HP0B00

53310HP0B00

Unit Price

6
POWER STEERING UNIT ASSY.(EPS)

53600-HN2-B70   53600HN2B70

53600HN2B70
Not available
8
BOLT, FLANGE, 10X35

90102-GEZ-000   90102GEZ000

90102GEZ000

Unit Price

9
NUT, SELF-LOCK, 14MM

90213-S73-003   90213S73003

90213S73003
Not available
10
NUT, SELF-LOCK, 12MM

90305-HC4-000   90305HC4000

90305HC4000

Unit Price

11
WASHER, THRUST, 14MM

90402-HA0-000   90402HA0000

90402HA0000

Unit Price

12
BEARING, SELF-ALIGNING BALL

91051-HP0-B01   91051HP0B01

91051HP0B01

Unit Price

13
DUST SEAL, 38X54X7

91251-HP0-B02   91251HP0B02

91251HP0B02

Unit Price

14
DUST SEAL, 27X40X5

91252-HP0-B01   91252HP0B01

91252HP0B01

Unit Price

16
NUT, FLANGE, 8MM
NUT, FLANGE, 8MM

94050-08000   9405008000

9405008000
Not available
17
PIN COTTER 2 0MM

94201-20220  

94201-20350
 9420120220

Unit Price

18
PIN C0TTER 30X45

94201-30250  

94201-30300
 9420130250

Unit Price

19
CIRCLIP, INTERNAL, 47MM

94521-47000   9452147000

9452147000

Unit Price

20
BOLT, FLANGE, 8X16
BOLT, FLANGE, 8X16

95701-0801607   957010801607

957010801607

Unit Price

21
BOLT, FLANGE, 8X100

95801-0810000   958010810000

958010810000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Honda, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
