REAR BRAKE CALIPER

REAR WHEEL FOR HONDA CB 600 F HORNET 34CV 2012

FUEL TANK

DAMPER SET, WHEEL

06410-MER-D00 06410MERD00

117,67 $

Unit Price

SPROCKET, FINAL DRIVEN (43T)

41201-MFG-D01 41201MFGD01

Not available

AXLE, RR. WHEEL

42301-MFG-D00 42301MFGD00

Not available

COLLAR, L. RR. WHEEL SIDE

42311-MER-D00 42311MERD00

19,26 $

Unit Price

COLLAR, RR. BRAKE SIDE

42312-MER-D00 42312MERD00

13,17 $

Unit Price

FLANGE SUB ASSY., RR. DRIVEN

42615-MER-D00 42615MERD00

Not available

COLLAR, RR. AXLE DISTANCE

42620-MW0-010 42620MW0010

50,79 $

Unit Price

COLLAR B, RR. WHEEL DISTANCE

42625-MER-D00 42625MERD00

22,20 $

Unit Price

WHEEL SUB ASSY., RR.

42650-MGM-D10 42650MGMD10

Not available

WEIGHT, BALANCE (10G)

42704-MER-D00 42704MERD00

14,82 $

Unit Price

WEIGHT, BALANCE (20G)

42705-MER-D00 42705MERD00

23,44 $

Unit Price

WEIGHT, BALANCE (30G)

42706-MER-D00 42706MERD00

23,44 $

Unit Price

TIRE, RR. (BRIDGESTONE) (180/55ZR17 M/C 73W)

42711-MFG-D01 42711MFGD01

Not available

VALVE RIM (DUNLOP

42753-KBS-901

42704-NF5-710

21,41 $

Unit Price

VALVE, RIM (SCHRADER)

42753-MR4-901 42753MR4901

11,76 $

Unit Price

DISK, RR. BRAKE

43251-MFG-D01 43251MFGD01

378,41 $

Unit Price

BOLT, STUD, 12X25

90102-MAS-000 90102MAS000

5,86 $

Unit Price

BOLT BRK DISK 8X2

90105-MBB-000

90105-MV9-003

10,83 $

Unit Price

NUT, FLANGE, 12MM

90306-KF0-003 90306KF0003

6,75 $

Unit Price

NUT, U, 18MM

90306-MCS-G00 90306MCSG00

13,84 $

Unit Price

WASHER, 20X31.5X2

90401-MAS-000 90401MAS000

5,71 $

Unit Price

BEARING, RADIAL BALL, 6322

91051-MAS-003 91051MAS003

57,06 $

Unit Price

BEARING, RADIAL BALL, 6204UU

91052-MAE-004 91052MAE004

38,16 $

Unit Price

DUST SEAL, 30X56X7.5

91252-MAS-003 91252MAS003

17,25 $

Unit Price

DUST SEAL, 30X47X7.5

91253-MAE-003 91253MAE003

22,74 $

Unit Price

O-RING, 61X2

91302-MA6-003 91302MA6003

9,05 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

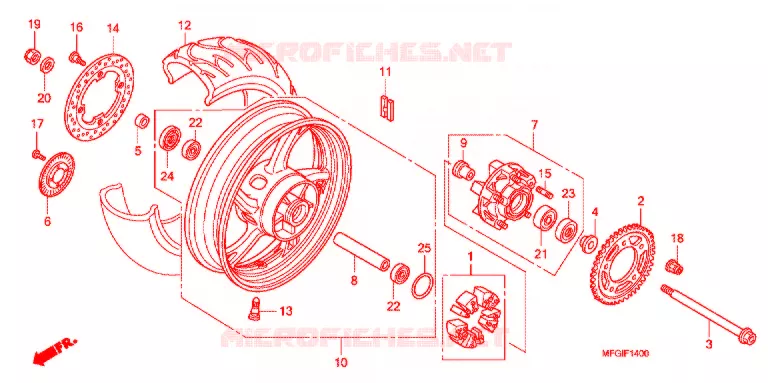

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR WHEEL of your Honda CB 600 F HORNET 34CV of HORNET. Let us know if you have any questions.
