Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

AIR CLEANER (RF / R2F / R2G)

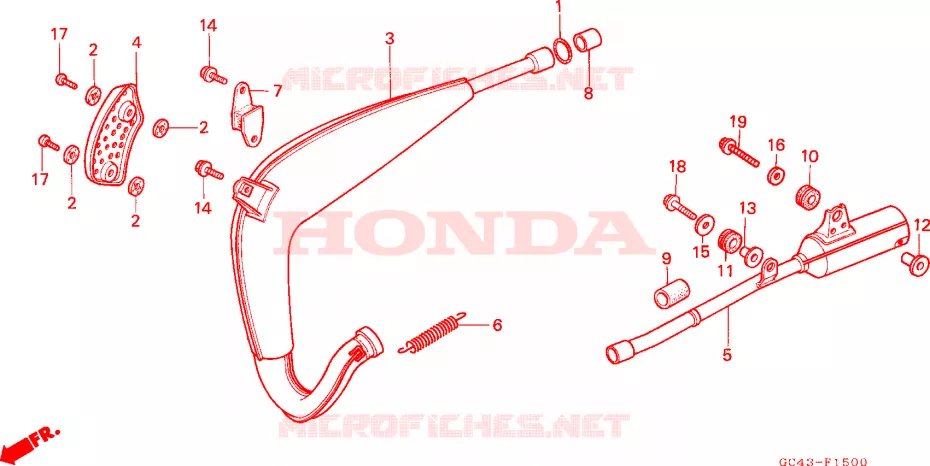

EXHAUST (RF / R2F / R2G) FOR HONDA CR 80 R BIG WHEEL 1986

PEDAL

PACKING POTECTOR

18292-415-000

18292-KF9-900

4,49 $

Unit Price

CHAMBER COMP., EXPANSION

18300-GM7-700 18300GM7700

Not available

PROTECTOR, CHAMBER

18324-GC4-700 18324GC4700

Not available

SILENCER COMP.

18330-GM7-700 18330GM7700

Not available

SPRING, EX. PIPE

18332-KA4-000 18332KA4000

Not available

STAY, CHAMBER

18355-KA4-000 18355KA4000

Not available

SEAL SILENCER

18361-GM7-700

18361-GS2-000

30,42 $

Unit Price

RUBBER, RADIATOR MOUNTING

19051-KA3-710 19051KA3710

7,22 $

Unit Price

RUBBER, CANISTER MOUNTING

19051-MB4-880 19051MB4880

Not available

COLLAR, RADIATOR MOUNTING

19052-KA3-710 19052KA3710

9,84 $

Unit Price

COLLAR, CANISTER MOUNTING

19052-MB4-880 19052MB4880

6,39 $

Unit Price

BOLT FLANGE 8X12

90133-KA3-730

96500-0801200

3,90 $

Unit Price

WASHER, SPECIAL, 6MM

90438-671-000 90438671000

Not available

WASHER, TANK CUSHION

90503-898-000 90503898000

3,98 $

Unit Price

SCREW, PAN, 6X8

93500-060080G 93500060080G

0,85 $

Unit Price

BOLT FLANGE 6X18

96000-0601800

96001-0601800

1,95 $

Unit Price

BOLT FLANGE 6X28

96000-0602800

96018-0602800

2,15 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Honda, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Select your CR 80 in the list above and click on its Genuine Spare Parts Catalog

CR 80 R BIG WHEEL

Honda CR

Displacement: 80 cc
Year: 1986
Model code CR80R2G
Color: R119

Europe

Add to my garage

The CR80R YM86 improves ease of handling while measuring high output from 22.5 horsepower to 23.5 horsepower by improving intake and exhaust timing and ignition performance. In addition, the CR80R uses NS cylinders coated with nickel and silicon carbide on the inner walls to improve heat resistance and durability as the engine output increases.
