Part number | Description | Unit Price | Qty | |||
---|---|---|---|---|---|---|
# 1 |
19006-MCJ-003 19006MCJ003 19006MCJ003 |
COLLAR
|
||||
# 2 |
19010-MCZ-003 19010MCZ003 19010MCZ003 |
RADIATOR COMP.
|
||||
# 3 |
19014-KEA-003 19014KEA003 19014KEA003 |
NUT, SETTING
![]() |
||||
# 4 |
19015-MCZ-003 19015MCZ003 19015MCZ003 |
SHROUD COMP.
|
||||
# 5 |
19020-MCF-003 19020MCF003 19020MCF003 |
FAN COMP., COOLING
|
Not available | |||
# 6 |
19030-MCZ-000 19030MCZ000 19030MCZ000 |
MOTOR ASSY., FAN
|
Not available | |||
# 7 |
19032-MCZ-000 19032-MCZ-01019032MCZ000 |
GRILLE, RADIATOR
|
||||
# 8 |
19037-GEE-710 19037GEE710 19037GEE710 |
CAP COMP., RADIATOR
|
||||
# 9 |
19038-MAL-601 19038MAL601 19038MAL601 |
NECK, FILLER
|
||||
# 10 |
19046-PAA-A00 19046PAAA00 19046PAAA00 |
LABEL, RADIATOR CAP
|
Contact | |||
# 11 |
19051-KA3-830 19051KA3830 19051KA3830 |
RUBBER, RADIATOR MOUNTING
![]() |
||||
# 12 |
19052-MN8-000 19052MN8000 19052MN8000 |
COLLAR, RADIATOR MOUNTING
![]() |
||||
# 13 |
19101-MCZ-000 19101MCZ000 19101MCZ000 |
TANK, RESERVE
|
Not available | |||
# 14 |
19104-MB0-700 19104MB0700 19104MB0700 |
CAP, RESERVE TANK
![]() |
||||
# 15 |
19120-MCZ-000 19120MCZ000 19120MCZ000 |
PROTECTOR, RADIATOR HOSE LOWER
|
Not available | |||
# 16 |
19150-MCZ-000 19150MCZ000 19150MCZ000 |
COVER, RADIATOR SIDE
|
||||
# 17 |
19501-MCZ-000 19501MCZ000 19501MCZ000 |
HOSE A, RADIATOR UPPER
|
||||
# 18 |
19502-MCZ-000 19502MCZ000 19502MCZ000 |
HOSE B, RADIATOR UPPER
|
||||
# 19 |
19503-MCZ-000 19503MCZ000 |
HOSE, RADIATOR LOWER
|
Contact | |||
# 20 |
19516-GAG-003 19516GAG003 19516GAG003 |
CLAMP, HOSE, 30-37MM
![]() |
||||
# 21 |
90105-MM4-000 90105MM4000 90105MM4000 |
SCREW, PAN, 6X10
|
||||
# 22 |
90111-162-000 90111162000 90111162000 |
BOLT, FLANGE, 6MM
![]() |
||||
# 23 |
90315-MK3-003 90315MK3003 90315MK3003 |
NUT, SERRATE, 5MM
|
||||
# 24 |
93401-0601407 934010601407 934010601407 |
BOLT-WASHER, 6X14
|
||||
# 25 |
93891-0401208 938910401208 938910401208 |
SCREW-WASHER, 4X12
|
||||
# 26 |
94050-06000 94050-060809405006000 |
NUT, FLANGE, 6MM
|
||||
# 27 |
95002-02100 9500202100 9500202100 |
CLIP, TUBE (B10)
|
||||
# 28 |
95005-5578020 950055578020 950055578020 |
TUBE, 5.3X780 (95005-55001-20M)
|
Not available | |||
# 29 |
95005-5090030 950055090030 950055090030 |
TUBE, 5X900 (95005-50001-30M)
|
Not available | |||
# 30 |
96001-0602507 960010602507 960010602507 |
BOLT, FLANGE, 6X25
![]() |

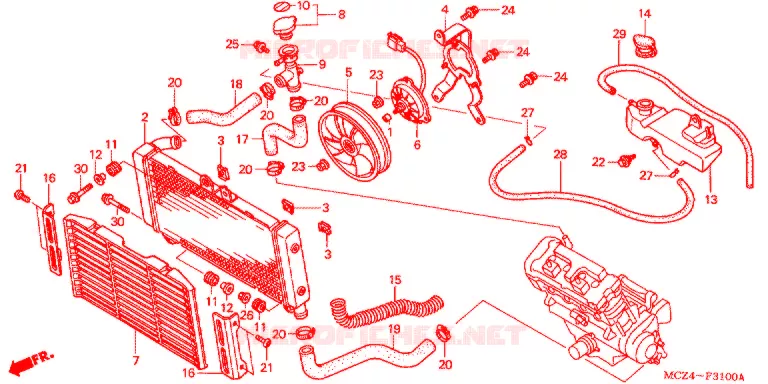

Honda HORNET
Displacement: 900 cc Year: 2002 Model code CB900F2 Color: NH436 / DIMENSIONS
