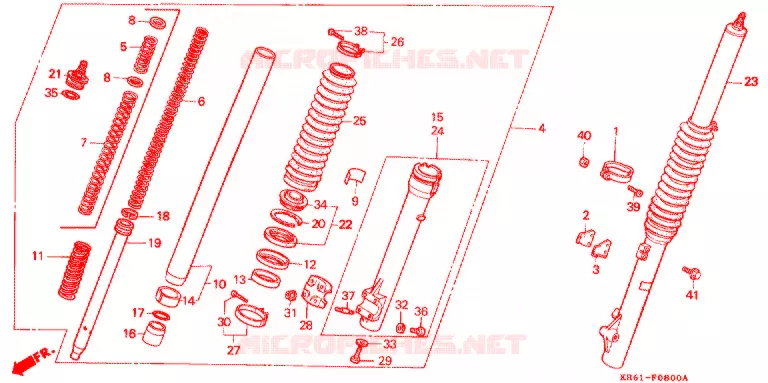

FRONT FORK (1) (RF / R2F / RH / R3J / RK / RL / R3L) FOR HONDA XLR 250 R 1986

FRONT BRAKE CALIPER (1) (RF / R2F / RH)

CLAMPER, SPEEDOMETER CABLE

44832-KR6-000 44832KR6000

Not available

CLAMPER B, FR. BRAKE CABLE

45462-MG3-650 45462MG3650

10,37 $

Unit Price

CLAMPER A, FR. BRAKE CABLE

45461-MG3-650 45461MG3650

Not available

--- ENS. FOURCHE AV. D. *R134/YR112MU * (R134/YR112MU ROUGE ARDENT/SUPER OR METALLIQUE-U) *R134/YR112MU *

51400-KR6-003ZA 51400KR6003ZA

Not available

SPRING A, FR. CUSHION

51401-KR6-003 51401KR6003

Not available

SPRING B, FR. CUSHION

51402-KR6-003 51402KR6003

Not available

SEAT, SPRING

51403-ME4-003 51403ME4003

9,35 $

Unit Price

PIPE COMP., FR. FORK (SHOWA)

51410-KR6-003 51410KR6003

Not available

SPRING, FR. FORK REBOUND

51411-MG1-003 51411MG1003

7,01 $

Unit Price

RING, BACK UP

51412-461-003 51412461003

10,11 $

Unit Price

BUSH GUIDE

51414-461-003

51414-MN4-003

21,19 $

Unit Price

BUSH, SLIDER

51415-MA0-771 51415MA0771

Not available

--- BOITIER COMP. INFERIEUR D. *YR112MU * (YR112MU SUPER-OR METALLIQUE-U) *YR112MU *

51420-KR6-003ZA 51420KR6003ZA

Not available

PIECE, OIL LOCK

51432-KR6-003 51432KR6003

Not available

RING, STOPPER

51435-KL4-951 51435KL4951

Not available

RING, PISTON

51437-ME4-003 51437ME4003

15,14 $

Unit Price

PIPE, SEAT

51440-KR6-003 51440KR6003

Not available

RING, OIL SEAL STOPPER

51447-KR6-003 51447KR6003

6,53 $

Unit Price

BOLT ASSY., FR. FORK

51450-KE1-761 51450KE1761

Not available

SEAL SET, FR. FORK

51490-KR6-305 51490KR6305

37,27 $

Unit Price

--- ENS. FOURCHE AV. G. *R134/YR112MU * (R134/YR112MU ROUGE ARDENT/SUPER OR METALLIQUE-U) *R134/YR112MU *

51500-KR6-003ZA 51500KR6003ZA

Not available

--- BOITIER COMP. INFERIEUR G. *YR112MU * (YR112MU SUPER-OR METALLIQUE-U) *YR112MU *

51520-KR6-003ZA 51520KR6003ZA

Not available

BOOT, FR. FORK *R134* *R134 *

51611-KR6-003ZA 51611KR6003ZA

Not available

BAND, FR. FORK BOOT

51612-430-010 51612430010

10,97 $

Unit Price

HOLDER AXLE --- PORTE-AXE *YR112MU * (YR112MU SUPER-OR METALLIQUE-U) *YR112MU *

51634-MK5-003ZA 51634MK5003ZA

Not available

BOLT, SOCKET, 8X27

90116-383-721 90116383721

8,89 $

Unit Price

NUT, U, 6MM

90301-473-003 90301473003

5,13 $

Unit Price

PACKING, FR. FORK DRAIN COCK

90543-273-000 90543273000

3,54 $

Unit Price

WASHER, SPECIAL, 8MM

90544-283-000 90544283000

3,52 $

Unit Price

DUST SEAL

91254-KR6-003 91254KR6003

25,77 $

Unit Price

O-RING, 27.7X3.5

91357-ME4-003 91357ME4003

5,78 $

Unit Price

BOLT, STUD, 6X25

92900-060250E 92900060250E

1,60 $

Unit Price

SCREW, PAN, 3X25

93500-030250A 93500030250A

Not available

SCREW, PAN, 5X18

93500-050180A 93500050180A

0,84 $

Unit Price

NUT, HEX., 5MM

94001-050000S 94001050000S

0,84 $

Unit Price

BOLT FLANGE 6X16

96000-0601600

96001-0601600

1,37 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK (1) (RF/R2F/RH/R3J/RK/RL/R3L) of your Honda XLR 250 R of XL. Let us know if you have any questions.
