REAR ARM - CHAIN CASE (1) (XLR250RF / R2F)

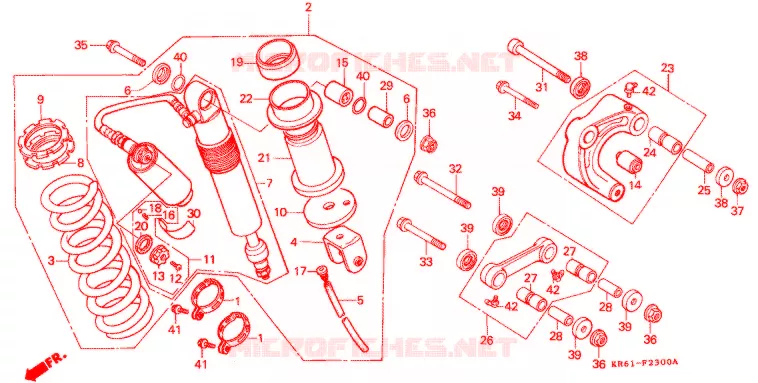

REAR SHOCK ABSORBER (1) (RF / R2F / RH / R3J / RK / RL / R3L) FOR HONDA XLR 250 R 1986

REAR FENDER (1) (XLR250RF / R2F)

BAND, SUB TANK

50252-KR6-000 50252KR6000

Not available

CUSHION ASSY., RR. *R134* *R134 *

52400-KR6-003ZA 52400KR6003ZA

Not available

--- RESSORT D'AMORTISSEUR AR. *R134 * (R134 ROUGE COMBAT) *R134 *

52401-KR6-003ZA 52401KR6003ZA

Not available

JOINT B, THREE WAY

52403-KR5-003 52403KR5003

Not available

PIPE, DRAIN

52405-GC5-003 52405GC5003

Not available

CAP, DUST SEAL

52406-KB7-003 52406KB7003

8,47 $

Unit Price

DAMPER COMP., RR.

52410-KR6-003 52410KR6003

Not available

ADJUSTER, SPRING

52422-MA0-003 52422MA0003

36,88 $

Unit Price

NUT, ADJUSTER

52423-KA3-711 52423KA3711

Not available

STOPPER, SPRING SEAT

52424-KB7-003 52424KB7003

Not available

PLATE SET, ADJUSTING

52438-KR6-003 52438KR6003

Not available

SCREW

52448-KF0-003 52448KF0003

Not available

PLATE, BEAM ADJUSTING

52449-KR6-003 52449KR6003

Not available

BUSH, DAMPER LOWER

52451-MA0-000 52451MA0000

21,01 $

Unit Price

BUSH, DAMPER UPPER

52452-KB7-003 52452KB7003

26,20 $

Unit Price

SPRING, CLICK

52455-KR6-003 52455KR6003

Not available

JOINT, PIPE

52456-KB7-003 52456KB7003

Not available

BALL

52456-KF0-003 52456KF0003

Not available

DUST SEAL

52457-KB7-003 52457KB7003

Not available

RING, SEAL

52457-KF0-003 52457KF0003

Not available

GUIDE, SPRING

52458-KR6-003 52458KR6003

Not available

SEAT C, SPRING (SHOWA)

52459-KB7-003 52459KB7003

Not available

ARM ASSY., CUSHION

52460-KR6-000 52460KR6000

Not available

BUSH, CUSHION ARM

52462-KF0-003 52462KF0003

Not available

COLLAR, CUSHION ARM PIVOT

52463-KF0-000 52463KF0000

Not available

ROD ASSY., CUSHION CONNECTING

52470-KR6-000 52470KR6000

Not available

BUSH, CUSHION CONNECTING ROD

52472-MA0-013 52472MA0013

37,13 $

Unit Price

COLLAR CONN ROD

52473-MA0-010

52473-MA0-020

21,01 $

Unit Price

COLLAR, BUSH

52486-KB7-003 52486KB7003

19,29 $

Unit Price

LABEL, RR. DAMPER CAUTION

87516-KA4-731 87516KA4731

Not available

BOLT SOCKET 12X97 --- BOULON DE DOUILLE, 12X97

90128-KR6-000 90128KR6000

Not available

BOLT, FLANGE, 10X77

90129-KF0-000 90129KF0000

20,58 $

Unit Price

BOLT FLANGE 10X69

90151-KF0-000

Not available

BOLT, FLANGE, 10X43

90153-MC4-003 90153MC4003

Not available

BOLT FLNG 10X58

90182-KA3-730

90153-KK0-000

12,66 $

Unit Price

NUT, U, 10MM

90304-GE8-003 90304GE8003

5,43 $

Unit Price

NUT, FLANGE, 12MM

90306-KF0-003 90306KF0003

6,75 $

Unit Price

SEAL CUSHION ARM

91261-KA3-711

Not available

SEAL CUSHION ARM

91261-KA3-712

Not available

SEAL CUSH CONN

91262-KA3-711

91265-964-003

17,71 $

Unit Price

SEAL, CUSHION CONNECTING ROD PIVOT (ARAI)

91262-KA3-712 91262KA3712

17,71 $

Unit Price

DUST SEAL B

91351-KB7-003 91351KB7003

4,55 $

Unit Price

BOLT FLANGE 6X22

96000-0602200

90010-GHB-660

2,33 $

Unit Price

NIPPLE, GREASE (B.T6S)

96201-80000 9620180000

3,79 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR SHOCK ABSORBER (1) (RF/R2F/RH/R3J/RK/RL/R3L) of your Honda XLR 250 R of XL. Let us know if you have any questions.
