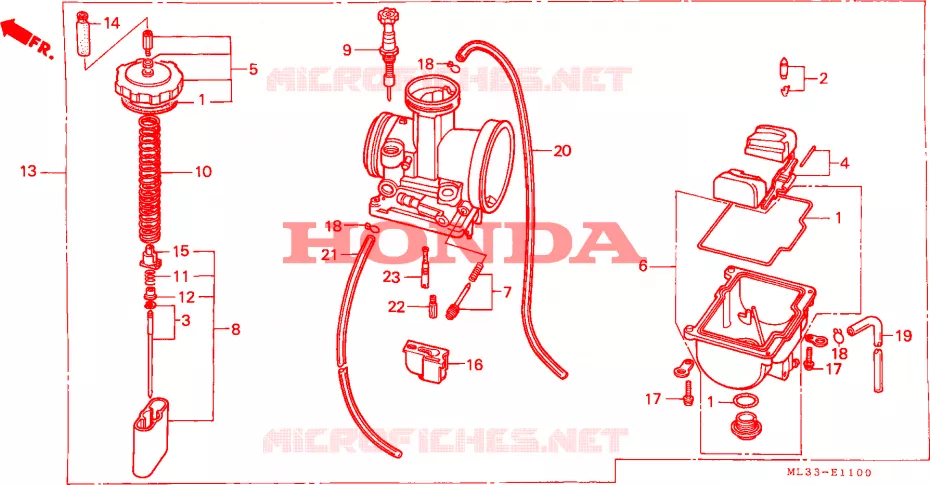

CARBURETOR FOR HONDA CR 500 R 1991

CARBURETOR OPTIONAL PARTS KIT

(1) 16010-KA5-691

GASKET SET

(2) 16011-KA3-741

VALVE SET, FLOAT

(3) 16202-ML3-681

NEEDLE SET, JET (R1368NS)

(4) 16013-HA2-671

FLOAT SET

(5) 16014-KA5-691

TOP SET

(6) 16015-VM0-004

CHAMBER SET, FLOAT

(7) 16016-ML3-910

SCREW SET A

(8) 16022-ML3-760

VALVE SET, THROTTLE

(9) 16046-KA5-691

VALVE SET, STARTER

(10) 16050-KA5-691

SPRING, COMPRESSION COIL

(11) 16051-KA3-761

SPRING, COMPRESSION COIL

(12) 16066-KA3-761

COLLAR, SPRING SETTING

(13) 16100-ML3-760

CARBURETOR ASSY. (PJ27G A)

(14) 16118-166-004

CAP, CABLE SEALING

(15) 16137-KA3-761

HOLDER, CABLE

(16) 16185-KA3-761

PLATE, BUFFER

(17) 93892-0401608

SCREW-WASHER, 4X16

(18) 95002-02070

CLIP, TUBE (B7)

(19) 95003-0502731

TUBE, VINYL, 3.5X6.5X270 (95003-05001-60M)

(20) 95003-070-4031S

TUBE, VINYL, 4X7X330 (95003-07001-60M)

(21) 95003-070-4031S

TUBE, VINYL, 4X7X360 (95003-07001-60M)

(22) 99101-3571700

JET, MAIN, #170

(23) 99103-4400550

JET, SLOW, #55

	Part number	Description	Qty
# 1	16010-KA5-691 16010KA5691 16010KA5691	GASKET SET	62,58 $
# 2	16011-KA3-741 16011KA3741 16011KA3741	VALVE SET, FLOAT	60,72 $
# 3	16202-ML3-681 16202ML3681 16202ML3681	NEEDLE SET, JET (R1368NS)	Not available	0,00 $
# 4	16013-KA3-741 16013-HA2-671 16013KA3741	FLOAT SET	67,29 $
# 5	16014-KA5-691 16014KA5691 16014KA5691	TOP SET	Not available	0,00 $
# 6	16015-VM0-004 16015VM0004 16015VM0004	CHAMBER SET, FLOAT	Not available	0,00 $
# 7	16016-ML3-910 16016ML3910 16016ML3910	SCREW SET A	Not available	0,00 $
# 8	16022-ML3-760 16022ML3760 16022ML3760	VALVE SET, THROTTLE	Contact	0,00 $
# 9	16046-KA5-691 16046KA5691 16046KA5691	VALVE SET, STARTER	87,95 $
# 10	16050-KA5-691 16050KA5691 16050KA5691	SPRING, COMPRESSION COIL	Not available	0,00 $
# 11	16051-KA3-761 16051KA3761 16051KA3761	SPRING, COMPRESSION COIL	Not available	0,00 $
# 12	16066-KA3-761 16066KA3761 16066KA3761	COLLAR, SPRING SETTING	Not available	0,00 $
# 13	16100-ML3-760 16100ML3760 16100ML3760	CARBURETOR ASSY. (PJ27G A)	Contact	0,00 $
# 14	16118-166-004 16118166004 16118166004	CAP, CABLE SEALING	9,65 $
# 15	16137-KA3-761 16137KA3761 16137KA3761	HOLDER, CABLE	Not available	0,00 $
# 16	16185-KA3-761 16185KA3761 16185KA3761	PLATE, BUFFER	Not available	0,00 $
# 17	93892-0401618 93892-0401608 938920401618	SCREW-WASHER, 4X16	1,36 $
# 18	95002-02070 9500202070 9500202070	CLIP, TUBE (B7)	1,86 $
# 19	95003-0502731 950030502731 950030502731	TUBE, VINYL, 3.5X6.5X270 (95003-05001-60M)	Not available	0,00 $
# 20	95003-0703331 950030703331	TUBE, VINYL, 4X7X330 (95003-07001-60M)	Not available	0,00 $
# 21	95003-0703631 950030703631	TUBE, VINYL, 4X7X360 (95003-07001-60M)	Not available	0,00 $
# 22	99101-3571700 991013571700 991013571700	JET, MAIN, #170	10,63 $
# 23	99103-4400550 991034400550 991034400550	JET, SLOW, #55	13,32 $

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Honda, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
