REVERSE GEAR

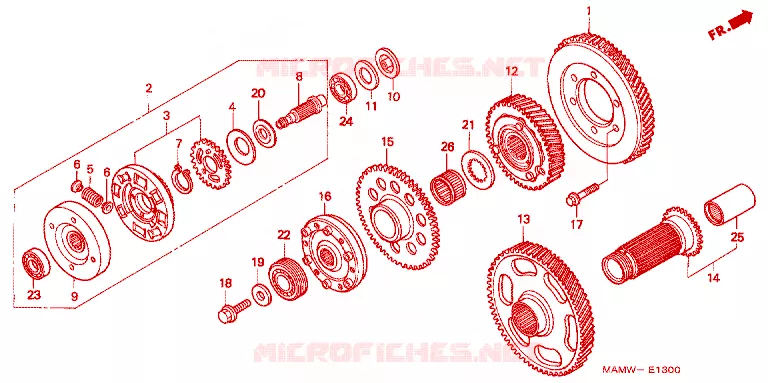

PRIMARY DRIVE GEAR FOR HONDA GL 1500 GOLD WING SE 1998

FINAL SHAFT

Item numbers

GEAR, A.C. GENERATOR DRIVE (103T)

13321-MT8-000 13321MT8000

Not available

GEAR ASSY., A.C. GENERATOR DRIVEN

13430-MAM-A60 13430MAMA60

Not available

GEAR SET, A.C. GENERATOR DRIVEN

13434-MT8-305 13434MT8305

Not available

SPRING, A.C. GENERATOR FRICTION

13435-MZ0-300 13435MZ0300

Not available

SPRING, A.C. GENERATOR DAMPER

13436-MN5-004 13436MN5004

Not available

SEAT, DAMPER SPRING

13438-MN5-310 13438MN5310

Not available

SEAT, DAMPER SPRING

13438-MN5-310 13438MN5310

Not available

SPRING, A.C. GENERATOR DRIVEN GEAR

13439-MZ0-300 13439MZ0300

Not available

SHAFT, A.C. GENERATOR DRIVEN

13452-MN5-310 13452MN5310

Not available

FLYWHEEL, A.C. GENERATOR (B)

13456-MN5-320 13456MN5320

Not available

PLATE, A.C. GENERATOR SHAFT OIL PASS

13459-MT8-000 13459MT8000

Not available

SPRING, THRUST

13538-MT8-000 13538MT8000

Not available

GEAR COMP., PRIMARY DRIVE (49T)

23110-MN5-010 23110MN5010

Not available

GEAR, PRIMARY DRIVEN (78T)

23121-MN5-000 23121MN5000

Not available

BOSS COMP., PRIMARY DRIVEN GEAR

23130-MN5-000 23130MN5000

Not available

GEAR COMP., STARTER DRIVEN (66T)

28110-MN5-000 28110MN5000

Not available

OUTER COMP., STARTING CLUTCH

28125-MN5-014 28125MN5014

Not available

BOLT, UBS, 8X20

90004-MN5-000 90004MN5000

4,94 $

Unit Price

BOLT, FLANGE, 12X30

90005-MN5-000 90005MN5000

Not available

WASHER, 12X33X4

90402-MN5-000 90402MN5000

Not available

WASHER, 19.7X40X2.6

90413-MN5-000 90413MN5000

Not available

WASHER, SPLINE, 28MM

90493-MN5-000 90493MN5000

Not available

BEARING, RADIAL BALL, 6205

91009-MN5-003 91009MN5003

Not available

BEARING, RADIAL BALL, 6003 (TOYO)

91015-MN5-003 91015MN5003

Not available

BEARING, RADIAL BALL, 6003U (TOYO)

91016-MN5-003 91016MN5003

Not available

BEARING, NEEDLE, 28X35X60

91024-MN5-003 91024MN5003

Not available

BEARING, NEEDLE, 36X41X18.3

91027-PC9-E01 91027PC9E01

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the PRIMARY DRIVE GEAR of your Honda GL 1500 GOLD WING SE of GOLD-WING. Let us know if you have any questions.

Please choose your model in the list above and click on its Genuine Spare Parts Catalogue

GL 1500 GOLD WING SE

Honda GOLD-WING

Displacement: 1500 cc
Year: 1998
Model code GL1500SEW
Color: YR191U / NH1 / R176K / NH326E / NH390E

Canada

Add to my garage

1520cc SOHC engine liquid-cooled opposed 6 cylinders, 5 speed. Slow-speed reverse gear system. The product code is MN5. New cylinder head covers and logo emblems design, speedometer and tachometer have white faces.
