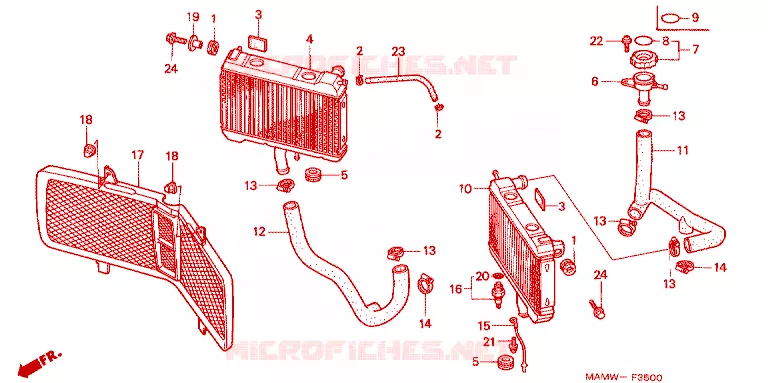

RADIATOR FOR HONDA GL 1500 GOLD WING SE 1998

EXPANSION TANK

Item numbers

GROMMET, OIL COOLER

15604-MG7-000 15604MG7000

5,71 $

Unit Price

GROMMET, OIL COOLER

15604-MG7-000 15604MG7000

5,71 $

Unit Price

CLIP, FUEL HOSE

16969-MB1-000 16969MB1000

8,34 $

Unit Price

CLIP, FUEL HOSE

16969-MB1-000 16969MB1000

8,34 $

Unit Price

RUBBER, CUSHION

17508-MN5-000 17508MN5000

6,90 $

Unit Price

RUBBER, CUSHION

17508-MN5-000 17508MN5000

6,90 $

Unit Price

RADIATOR COMP., R.

19010-MAM-003 19010MAM003

Not available

RUBBER, RADIATOR MOUNTING

19012-HB9-000 19012HB9000

10,76 $

Unit Price

RUBBER, RADIATOR MOUNTING

19012-HB9-000 19012HB9000

10,76 $

Unit Price

NECK, FILLER (TOYO)

19039-MN5-003 19039MN5003

Not available

CAP COMP RAD

19045-MY3-671

19045-MY3-621

67,97 $

Unit Price

SEAL, RADIATOR CAP (ENGLISH) (ANGLAIS)

19055-MV9-921 19055MV9921

Not available

SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE) (ANGLAIS/FRANCAIS/JAPONAIS)

19055-MV9-881 19055MV9881

15,49 $

Unit Price

RADIATOR COMP., L.

19060-MAM-003 19060MAM003

Not available

HOSE, RADIATOR UPPER

19501-MN5-000 19501MN5000

Not available

HOSE, WATER LOWER

19502-MN5-000 19502MN5000

Not available

CLAMP, WATER HOSE

19503-MB1-870 19503MB1870

19,18 $

Unit Price

CLAMP, WATER HOSE

19503-MB1-870 19503MB1870

19,18 $

Unit Price

CLAMP, WATER HOSE

19503-MB1-870 19503MB1870

19,18 $

Unit Price

CLAMP, WATER HOSE

19503-MB1-870 19503MB1870

19,18 $

Unit Price

CLAMP, WATER HOSE

19503-MB1-870 19503MB1870

19,18 $

Unit Price

CLAMP, WATER HOSE

19515-MJ4-670 19515MJ4670

Not available

CLAMP, WATER HOSE

19515-MJ4-670 19515MJ4670

Not available

SUB CORD, THERMOSTAT SWITCH EARTH

32113-MN5-000 32113MN5000

Not available

SW ASSY THERMO

37760-MT2-003

37760-MB2-900

114,23 $

Unit Price

GRILLE COMP., RADIATOR

85400-MZ3-710 85400MZ3710

238,23 $

Unit Price

NUT, CAP, 5MM

90167-MN5-000 90167MN5000

6,16 $

Unit Price

NUT, CAP, 5MM

90167-MN5-000 90167MN5000

6,16 $

Unit Price

COLLAR, 8.8X11

90551-MG7-000 90551MG7000

7,82 $

Unit Price

O-RING, 13.5X1.4

91307-611-000

Not available

WASHER SCREW 4X8

93891-0400818

93891-0400808

0,85 $

Unit Price

SCREW-WASHER, 5X16

93891-0501607 938910501607

0,87 $

Unit Price

TUBE, FUEL, 7.3X80 (95001-75001-60M)

95001-7508040 950017508040

Not available

BOLT, FLANGE, 6X20

95701-0602008 957010602008

1,95 $

Unit Price

BOLT, FLANGE, 6X20

95701-0602008 957010602008

1,95 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the RADIATOR of your Honda GL 1500 GOLD WING SE of GOLD-WING. Let us know if you have any questions.

Please choose your model in the list above and click on its Genuine Spare Parts Catalogue

GL 1500 GOLD WING SE

Honda GOLD-WING

Displacement: 1500 cc
Year: 1998
Model code GL1500SEW
Color: YR191U / NH1 / R176K / NH326E / NH390E

Canada

Add to my garage

1520cc SOHC engine liquid-cooled opposed 6 cylinders, 5 speed. Slow-speed reverse gear system. The product code is MN5. New cylinder head covers and logo emblems design, speedometer and tachometer have white faces.
