COOLING DUCT

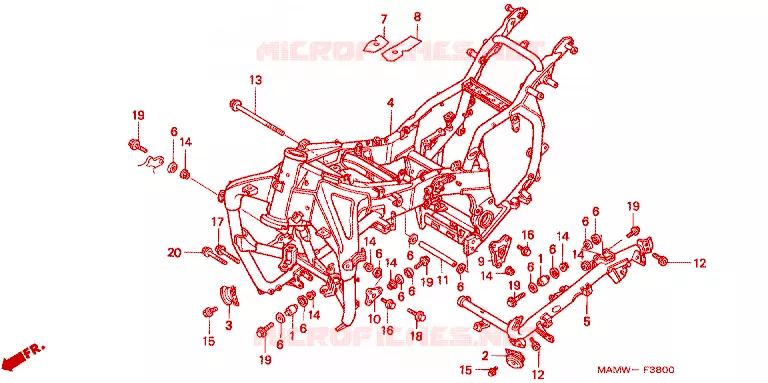

FRAME FOR HONDA GL 1500 GOLD WING SE 1998

TOOL

Item numbers

BUSH, ENGINE HANGER (B)

11141-MN5-000 11141MN5000

Not available

BUSH, ENGINE HANGER (B)

11141-MN5-000 11141MN5000

Not available

HORN COMP(HIGH)

38110-MAM-A60

Not available

HORN COMP(S LOW)

38120-MAM-A60

38120-MAM-B11

84,19 $

Unit Price

FRAME

50100-MAM-A80

50100-MAM-A60

3 332,69 $

Unit Price

SUB FRAME COMP.

50150-MAM-A60 50150MAMA60

494,92 $

Unit Price

RUBBER C, MOUNTING

50203-MN5-000 50203MN5000

18,07 $

Unit Price

RUBBER C, MOUNTING

50203-MN5-000 50203MN5000

18,07 $

Unit Price

RUBBER C, MOUNTING

50203-MN5-000 50203MN5000

18,07 $

Unit Price

RUBBER C, MOUNTING

50203-MN5-000 50203MN5000

18,07 $

Unit Price

RUBBER C, MOUNTING

50203-MN5-000 50203MN5000

18,07 $

Unit Price

RUBBER C, MOUNTING

50203-MN5-000 50203MN5000

18,07 $

Unit Price

RUBBER C, MOUNTING

50203-MN5-000 50203MN5000

18,07 $

Unit Price

RUBBER C, MOUNTING

50203-MN5-000 50203MN5000

18,07 $

Unit Price

RUBBER C, MOUNTING

50203-MN5-000 50203MN5000

18,07 $

Unit Price

RUBBER C, MOUNTING

50203-MN5-000 50203MN5000

18,07 $

Unit Price

RUBBER C, MOUNTING

50203-MN5-000 50203MN5000

18,07 $

Unit Price

RUBBER C, MOUNTING

50203-MN5-000 50203MN5000

18,07 $

Unit Price

TAPE, R. MAIN PIPE UPPER GUSSET

50310-MT2-000 50310MT2000

7,46 $

Unit Price

TAPE, L. MAIN PIPE UPPER GUSSET

50311-MT2-000 50311MT2000

9,73 $

Unit Price

BRACKET, L. RR. ENGINE HANGER

50352-MN5-000 50352MN5000

21,97 $

Unit Price

BRACKET, L. FR. ENGINE HANGER

50354-MN5-000 50354MN5000

Not available

COLLAR B, DISTANCE

50362-MN5-000 50362MN5000

18,32 $

Unit Price

BOLT, SOCKET, 10X28

90106-MN5-000 90106MN5000

8,63 $

Unit Price

BOLT, SOCKET, 10X28

90106-MN5-000 90106MN5000

8,63 $

Unit Price

BOLT, ENGINE HANGER, 10X310

90152-MN5-000 90152MN5000

Not available

NUT FLANGE 10MM

94050-10080

Not available

BOLT, FLANGE, 8X10

95701-0801008 957010801008

Not available

BOLT, FLANGE, 8X10

95701-0801008 957010801008

Not available

BOLT, FLANGE, 8X20

95701-0802008 957010802008

1,82 $

Unit Price

BOLT, FLANGE, 8X20

95701-0802008 957010802008

1,82 $

Unit Price

BOLT, FLANGE, 8X80

95701-0808008 957010808008

Not available

BOLT, FLANGE, 10X55

95701-1005508 957011005508

3,45 $

Unit Price

BOLT, FLANGE, 10X60

95701-1006008 957011006008

3,69 $

Unit Price

BOLT, FLANGE, 10X60

95701-1006008 957011006008

3,69 $

Unit Price

BOLT, FLANGE, 10X60

95701-1006008 957011006008

3,69 $

Unit Price

BOLT, FLANGE, 10X60

95701-1006008 957011006008

3,69 $

Unit Price

BOLT, FLANGE, 10X60

95701-1006008 957011006008

3,69 $

Unit Price

BOLT, FLANGE, 10X70

95701-1007008 957011007008

4,18 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME of your Honda GL 1500 GOLD WING SE of GOLD-WING. Let us know if you have any questions.

Please choose your model in the list above and click on its Genuine Spare Parts Catalogue

GL 1500 GOLD WING SE

Honda GOLD-WING

Displacement: 1500 cc
Year: 1998
Model code GL1500SEW
Color: YR191U / NH1 / R176K / NH326E / NH390E

Canada

Add to my garage

1520cc SOHC engine liquid-cooled opposed 6 cylinders, 5 speed. Slow-speed reverse gear system. The product code is MN5. New cylinder head covers and logo emblems design, speedometer and tachometer have white faces.
